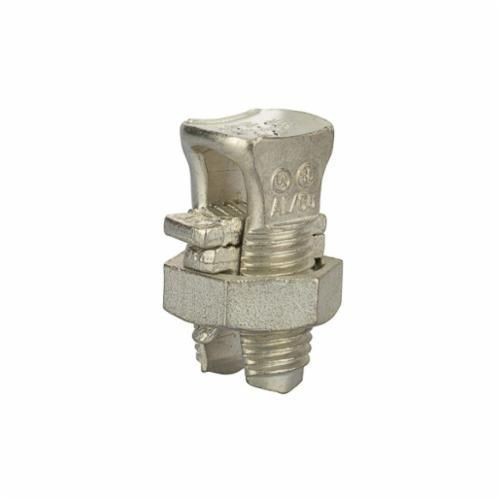

NSI N-2SP All-Purpose Split Bolt Connector, 8 to 2 AWG ACSR/Aluminum/Copper/Solid/Stranded Conductor, 0.748 x 1.35 in, Copper
NSI N-2SP All-Purpose Split Bolt Connector, 8 to 2 AWG ACSR/Aluminum/Copper/Solid/Stranded Conductor, 0.748 x 1.35 in, Copper
SKU: NSIN-2SP
Manufacturer Part Number: N-2SP
UPC: 662381020352
Documents
Features
- Class A and B wire type
- 6 - 2 AWG for ACSR conductor range of main and tap
- 8 solid AWG conductor range min tap with one maxmain
- 0.128 - 0.316 in wire dia
- 8 AWG solid - 2 AWG stranded conductor range for equal run and tap
- 40 Pieces/Pack
Specification
| Material | Copper |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Bolt Size | 1.35 in x 0.748 in |
| Catalog ID | NSIN-2SP |
| Conductor Size | 8 to 2 AWG |
| Conductor Type | Solid/Stranded/ACSR Copper/Aluminum |
| Dimensions | 1.35 in L x 0.748 in W |
| Finish | Tin-Plated |
| Series | N-SP |
| Specifications | 1 Pole, 2 Conductors, 0.3 in Split, 0.9 in Hex Nut, 275 in lb Torque |
| Temperature Rating | 90 deg C |
| Type | All-Purpose |
| Voltage Rating | 600 VAC |
| Application | For Combinations of Aluminum to Copper, Aluminum to Aluminum, Steel to Aluminum, Copper to Copper and Steel to Copper Applications and Wire Termination |
| Standard & Approvals | UL486B Listed |
| Includes | Nut, Spacer and Pressure Pad |
