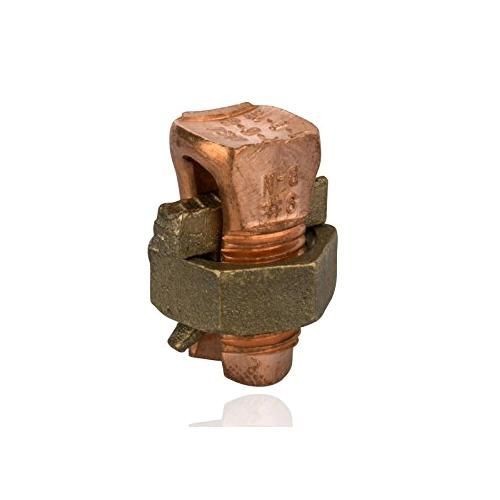

NSI N-6 Split Bolt Connector, 10 to 6 AWG Solid/Stranded Copper Conductor, 0.866 x 0.492 in, Copper
NSI N-6 Split Bolt Connector, 10 to 6 AWG Solid/Stranded Copper Conductor, 0.866 x 0.492 in, Copper
SKU: NSIN-6
Manufacturer Part Number: N-6
UPC: 662381020024
Documents
Features
- Copper split bolt connectors are high-strength solderless service connectors made of high-copper alloy for copper and copperweld wires
- Split-bolt type for two maximum wire sizes
- Class A and B wire type
- 16 AWG solid conductor range min tap with one max main
- 0.102 - 0.162 in wire dia
- 10 - 6 AWG solid conductor range for equal run and tap
- 100 Pieces/Pack
Specification
| Material | Copper |
|---|---|
| Series | N |
| Specifications | 1 Pole, 2 Conductors, 0.165 in Split, 0.62 in Hex Nut, 165 in lb Torque |
| Temperature Rating | 90 deg C |
| Voltage Rating | 600 VAC |
| Application | For Wire Termination |
| Standard & Approvals | CSA Certified, UL486B Listed |
| Conductor Size | 10 to 6 AWG |
| Dimensions | 0.866 in L x 0.492 in W |
| Bolt Size | 0.866 in x 0.492 in |
| Conductor Type | Solid/Stranded Copper |
