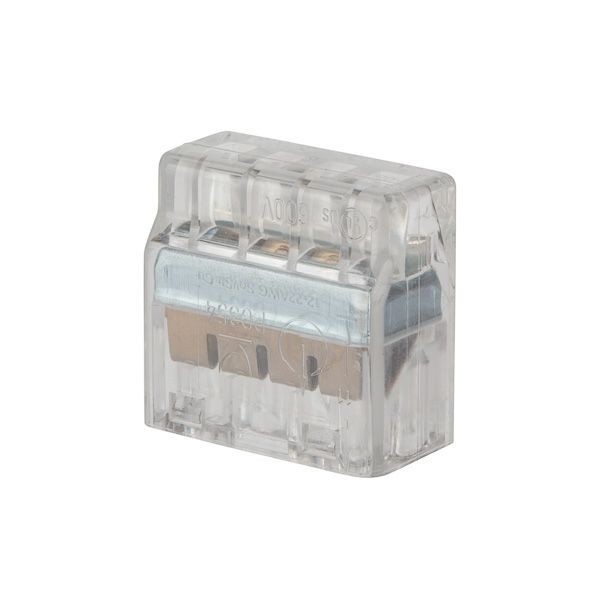

NSI Easy-Twist™ PIWC-4-C 4-Conductor 4-Port Push-In Wire Connector, 22 to 12 AWG Solid/Stranded Copper Wire, Polycarbonate
NSI Easy-Twist™ PIWC-4-C 4-Conductor 4-Port Push-In Wire Connector, 22 to 12 AWG Solid/Stranded Copper Wire, Polycarbonate
SKU: NSIPIWC-4-C
Manufacturer Part Number: PIWC-4-C
UPC: 662381159687
Documents
Features
- Fast, safe and reliable installation saves time
- No twisting or taping of conductors required
- Just strip the wire, insert the connector and you are done
- One wire per opening ensures loose connections are eliminated
- Made of strong, UL 94V-2 flame-retardant polycarbonate
- Integrated test port enables continuity testing
- Color coded for easy identification
- Compact design perfect for tight spaces
- Copper, tin plated, stainless steel spring, steel frame, zinc plated
- (2) 22 to (4) 12 AWG wire range
Specification
| Material | Polycarbonate |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | NSIPIWC-4-C |
| Color | Clear |
| Dimensions | 0.411 in H x 0.789 in W x 0.748 in D |
| Series | PIWC Series |
| Temperature Rating | 105 deg C |
| Type | 4-Conductor 4-Port Push-In |
| Voltage Rating | 600 VAC |
| Wire Size | 22 to 12 AWG |
| Wire Type | Solid Copper/Stranded |
| Application | Splicing Wire Applications |
| Standard & Approvals | RoHS Compliant, UL 486C File No. E155027, CSA File No. 231168, CE Marked, UL94 V-2 Flammability Rating |
