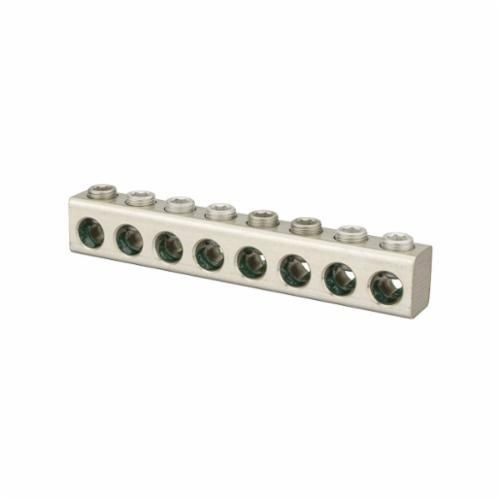

NSI Polaris™ PL250-8 Dual Rated Uninsulated Multi-Cable Connector, Aluminum Conductor, Aluminum Alloy

Selected PL250-8NSI Polaris™ PL250-8 Dual Rated Uninsulated Multi-Cable Connector, Aluminum Conductor, Aluminum Alloy
PL250-8NSI Polaris™ PL250-8 Dual Rated Uninsulated Multi-Cable Connector, Aluminum Conductor, Aluminum Alloy

Documents

Short Description

NSI offers its customers electronic ordering, order tracking, demand forecasting and invoicing, and has a well-earned reputation for fast order turnaround and complete fill rates. NSi’s internal teams offer the retailer responsive development of new products and custom marketing materials.

Features

  • Uninsulated multi-cable connectors are made from 6061-T6 aluminum alloy and are plated for corrosion resistance
  • 8 conductors
  • Stacked in one hole increments, up to 14 holes and are suitable for use on wire from NO 4 AWG to 750 MCM
  • Dual rated for use with copper or aluminum conductors
  • Not recommended for fine-stranded, flexible wire
  • Made of high strength 6061-T6 aluminum alloy
  • Class B and C Wire type

Specification

Material
Aluminum
Resistance
Corrosion
Specifications
1 Pole, Aluminum Color
Temperature Rating
90 deg C
Type
Uninsulated
Voltage Rating
600 VAC
Application
For Wire Termination
Standard & Approvals
AL9CU Rated, cULus Listed, UL 486B Listed
Dimensions
6.99 in L x 0.88 in W x 1.13 in H
Conductor Type
Aluminum
