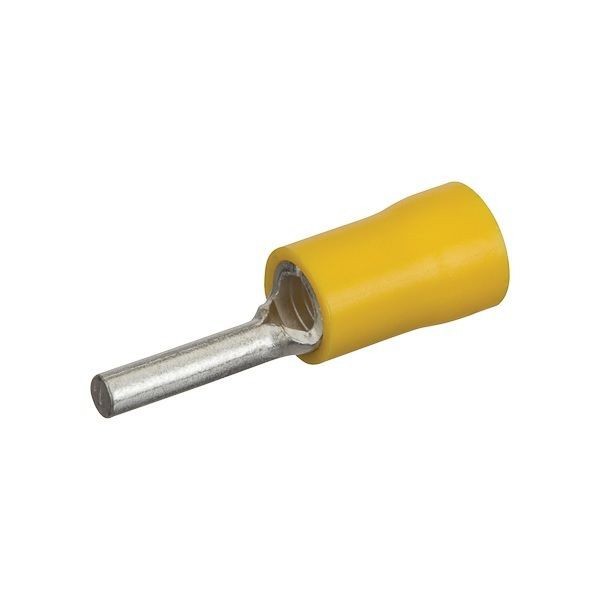

NSI Miniterms PT-12V Pin Terminal, 12 to 10 AWG Conductor, 0.107 in Dia x 0.41 in L Pin, Electro-Tin Plated Copper, Yellow
NSI Miniterms PT-12V Pin Terminal, 12 to 10 AWG Conductor, 0.107 in Dia x 0.41 in L Pin, Electro-Tin Plated Copper, Yellow
SKU: NSIPT-12V
Manufacturer Part Number: PT-12V
UPC: 662381079879
Documents
Features
- Vinyl insulated
- 1 terminal
- Electro-tin plated copper with brazed seam
- 50 Terminals/Pack
Specification
| Material | Copper |
|---|---|
| Temperature Rating | 75 deg C |
| Type | Insulated |
| Voltage Rating | 300 VAC |
| Application | For Terminal Blocks and Wire Termination |
| Standard & Approvals | cULus Listed |
| Conductor Size | 12 to 10 AWG |
| Color | Yellow |
| Specifications | 1/4 in Maximum Insulation Dia, 0.126 in ID Barrel |
| Series | PT |
| Pin Length | 0.41 in |
| Pin Diameter | 0.107 in |
| Overall Length | 1.12 in |
