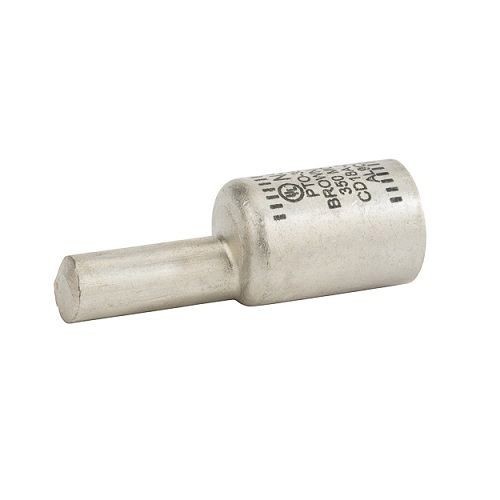

NSI PTO-350 Dual Rated Offset Pin Terminal, 350 kcmil Conductor, 0.57 in Dia x 1.46 in L Pin, Aluminum
NSI PTO-350 Dual Rated Offset Pin Terminal, 350 kcmil Conductor, 0.57 in Dia x 1.46 in L Pin, Aluminum
SKU: NSIPTO-350
Manufacturer Part Number: PTO-350
UPC: 662381033253
Features
- Plastisol cover insulation
- N1240 crimp tool
- Designed for termination of both aluminum and copper conductors
- Pin is offset for use in tight spaces and for ease of installation in side-by-side terminations
- Made of aluminum and is tin plated and pre-filled with oxide inhibitor
- Cover is provided for quick installation
- Great for paralleling cable
- 250 to 350 kcmil standard pin size
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color Code | Brown |
| Voltage Rating | 600 VAC |
| Standard & Approvals | cULus Listed, UL 486A/B |
| Catalog ID | NSIPTO-350 |
| Barrel Length | 1.62 |
| Type | Dual Rated |
| Dimensions | 3.09 in L |
| Application | For splice, tap power connectors and terminate |
| Specifications | 90 deg C Temperature, 1 Pole, 1 Conductor, 0.704 in ID x 1.09 in OD Barrel, Plastisol Cover Insulation, Tin Plated Finish |
| Series | PTO |
| Pin Length | 1.46 |
| Pin Diameter | 0.57 |
| Conductor Size | 350 kcmil |
