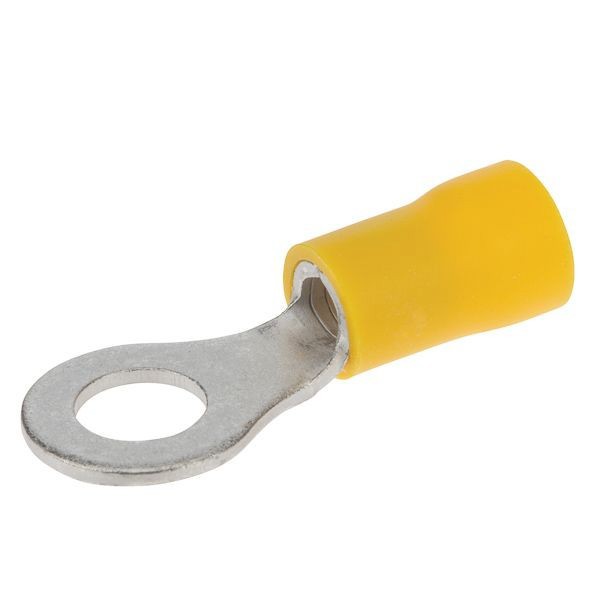

NSI Miniterms R12-38V-S R Series Standard Ring Terminal, 12 to 10 AWG Conductor, 1.326 in L, Brazed Seam Barrel, Copper, Yellow
NSI Miniterms R12-38V-S R Series Standard Ring Terminal, 12 to 10 AWG Conductor, 1.326 in L, Brazed Seam Barrel, Copper, Yellow
SKU: NSIR12-38V-S
Manufacturer Part Number: R12-38V-S
UPC: 662381060686
Features
- Basic tongue type ring terminal
- Safe and reliable connections, because it cannot be disconnected unless the screw is completely removed
Specification
| Material | Copper |
|---|---|
| Series | R Series |
| Stud Size | 3/8 in |
| Temperature Rating | 75 deg C |
| Tongue Size | 0.59 in W |
| Type | Standard |
| Voltage Rating | 300 VAC |
| Application | Wire Termination Applications |
| Standard & Approvals | cULus Listed, KM Approved |
| Conductor Size | 12 to 10 AWG |
| Barrel Type | Brazed Seam |
| Color | Yellow |
| Finish | Electro-Plated Tin |
| Barrel Size | 0.1338 in ID x 0.2559 in OD x 0.4921 in L |
| Specifications | 1-Terminal, Vinyl Insulated |
| Length | 1.326 in |
