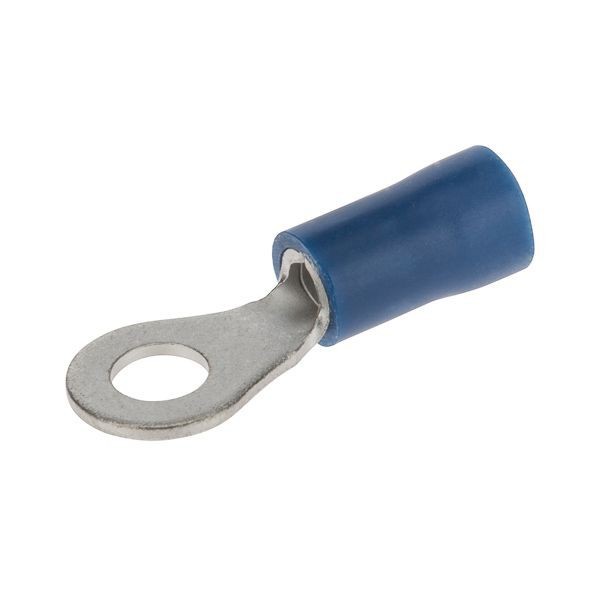

NSI Miniterms R16-8V-S R Series Standard Ring Terminal, 16 to 14 AWG Conductor, 0.866 in L, Brazed Seam Barrel, Copper, Blue
NSI Miniterms R16-8V-S R Series Standard Ring Terminal, 16 to 14 AWG Conductor, 0.866 in L, Brazed Seam Barrel, Copper, Blue
SKU: NSIR16-8V-S
Manufacturer Part Number: R16-8V-S
UPC: 662381060570
Features
- Basic tongue type ring terminal
- Safe and reliable connections, because it cannot be disconnected unless the screw is completely removed
Specification
| Length | 0.866 in |
|---|---|
| Material | Copper |
| Minimum Order Qty | 15 |
| Order Interval | 15 |
| Barrel Type | Brazed Seam |
| Color | Blue |
| Conductor Size | 16 to 14 AWG |
| Series | R Series |
| Specifications | 1-Terminal, Vinyl Insulated |
| Stud Size | #8 |
| Temperature Rating | 75 deg C |
| Tongue Size | 0.334 in W |
| Type | Standard |
| Voltage Rating | 300 VAC |
| Application | Wire Termination Applications |
| Standard & Approvals | cULus Listed, KM Approved |
| Catalog ID | NSIR16-8V-S |
| Barrel Size | 0.0905 in ID x 0.1771 in OD x 0.3937 in L |
| Finish | Electro-Plated Tin |
