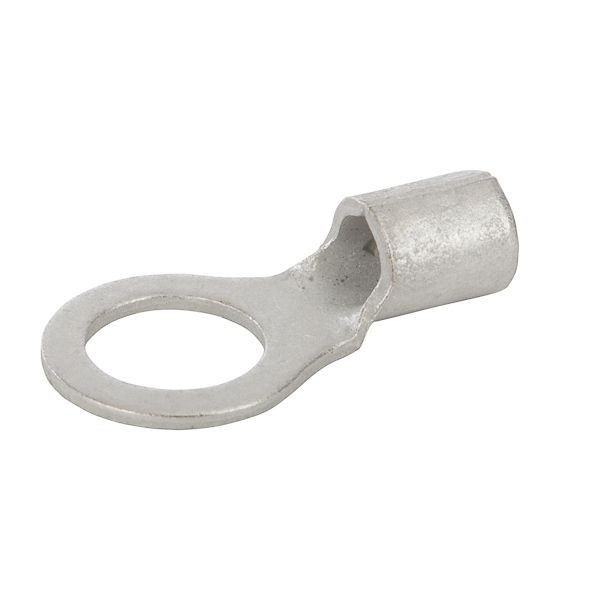

NSI Miniterms R8-38 R Series Bare Non-Insulated Ring Terminal, 8 AWG Conductor, 1.083 in L, Brazed Seam Barrel, Copper, Silver
NSI Miniterms R8-38 R Series Bare Non-Insulated Ring Terminal, 8 AWG Conductor, 1.083 in L, Brazed Seam Barrel, Copper, Silver
SKU: NSIR8-38
Manufacturer Part Number: R8-38
UPC: 662381072238
Documents
Features
- Basic tongue type ring terminal
- Safe and reliable connections, because it cannot be disconnected unless the screw is completely removed
Specification
| Series | R Series |
|---|---|
| Specifications | 1-Terminal |
| Stud Size | 3/8 in |
| Temperature Rating | 105 deg C |
| Tongue Size | 0.59 in W |
| Type | Bare Non-Insulated |
| Voltage Rating | 600 VAC |
| Application | Wire Termination Applications |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, cULus Listed, KM Approved |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Barrel Size | 0.181 in ID x 0.28 in OD x 0.331 in L |
| Barrel Type | Brazed Seam |
| Catalog ID | NSIR8-38 |
| Color | Silver |
| Conductor Size | 8 AWG |
| Finish | Electro-Plated Tin |
| Length | 1.083 in |
| Material | Copper |
