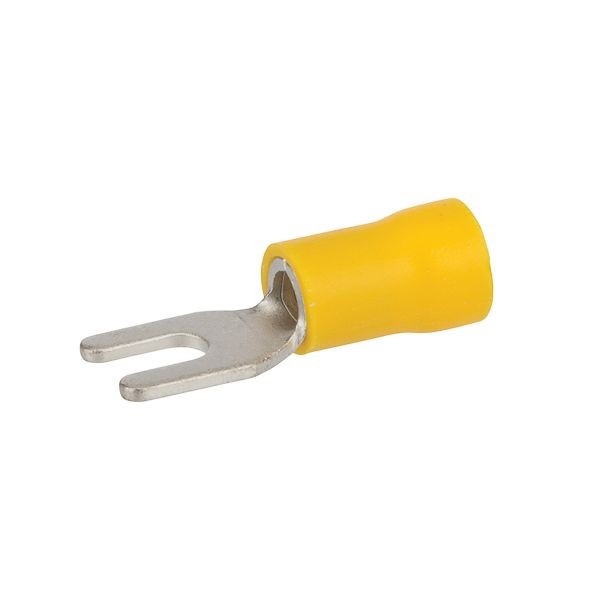

NSI Miniterms S12-6V S Series Insulated Spade Terminal, 12 to 10 AWG Conductor, 1.103 in L, Butted Seam Barrel, Copper, Yellow
NSI Miniterms S12-6V S Series Insulated Spade Terminal, 12 to 10 AWG Conductor, 1.103 in L, Butted Seam Barrel, Copper, Yellow
SKU: NSIS12-6V
Manufacturer Part Number: S12-6V
UPC: 662381062093
Features
- Open tongue end for rapid insertion on the mounting screw
Specification
| Length | 1.103 in |
|---|---|
| Material | Copper |
| Minimum Order Qty | 50 |
| Order Interval | 50 |
| Barrel Size | 0.133 in ID x 0.255 in OD x 0.492 in L |
| Barrel Type | Butted Seam |
| Catalog ID | NSIS12-6V |
| Color | Yellow |
| Conductor Size | 12 to 10 AWG |
| Finish | Electro-Plated Tin |
| Series | S Series |
| Specifications | 1-Terminal Vinyl Insulation, 0.295 in L Center to Barrel |
| Stud Size | #6 |
| Temperature Rating | 75 deg C |
| Tongue Size | 3/8 in W |
| Tongue Type | Spade |
| Type | Insulated |
| Voltage Rating | 300 VAC |
| Application | For used on free standing studs and wire termination applications |
| Standard & Approvals | cULus Listed, KM Approved |
