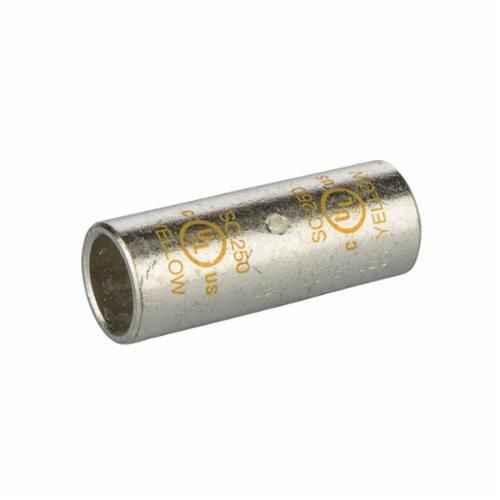

NSI SC-250 Dual Rated Compression Splice, 250 kcmil Conductor, 2 in L, Short Barrel, Copper, Yellow
NSI SC-250 Dual Rated Compression Splice, 250 kcmil Conductor, 2 in L, Short Barrel, Copper, Yellow
SKU: NSISC-250
Manufacturer Part Number: SC-250
UPC: 662381037107
Documents
Features
- Produced from high conductivity copper tubing
- Serrations indicate proper crimp locations
- Tin-plated to provide corrosion resistance
- Marked with die index and color coded
- Suitable for use at voltages up to 35 kV provided connector is properly taped
- 5 kV is the maximum voltage in all bare splices
- For applications greater than 2000 V, consult the cable manufacturer for voltage stress relief instructions
Specification
| Length | 2 in |
|---|---|
| Material | Copper |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Barrel Size | 0.59 in ID x 0.75 in OD |
| Barrel Type | Short |
| Catalog ID | NSISC-250 |
| Color | Yellow |
| Conductor Size | 250 MCM |
| Conductor Type | Stranded Copper |
| Finish | Tin Plated |
| Specifications | Single pole 2-Conductor |
| Temperature Rating | 90 deg C |
| Type | Dual Rated |
| Voltage Rating | 600 VAC |
| Application | For Splice, Terminate, Tap Power Connectors |
| Standard & Approvals | UL486 Listed |
