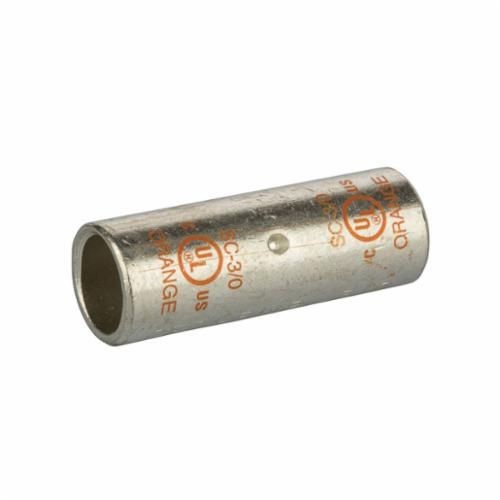

NSI SC-3/0 Dual Rated Compression Splice, 3/0 AWG Conductor, 1-3/4 in L, Short Barrel, Copper, Orange
NSI SC-3/0 Dual Rated Compression Splice, 3/0 AWG Conductor, 1-3/4 in L, Short Barrel, Copper, Orange
SKU: NSISC-3/0
Manufacturer Part Number: SC-3/0
UPC: 662381037084
Documents
Features
- Produced from high conductivity copper tubing
- Serrations indicate proper crimp locations
- Tin-plated to provide corrosion resistance
- Marked with die index and color coded
- Suitable for use at voltages up to 35 kV provided connector is properly taped
- 5 kV is the maximum voltage in all bare splices
- For applications greater than 2000 V, consult the cable manufacturer for voltage stress relief instructions
Specification
| Length | 1-3/4 in |
|---|---|
| Material | Copper |
| Specifications | Single pole 2-Conductor |
| Temperature Rating | 90 deg C |
| Type | Dual Rated |
| Voltage Rating | 600 VAC |
| Application | For Splice, Terminate, Tap Power Connectors |
| Standard & Approvals | UL486 Listed |
| Conductor Size | 3/0 AWG |
| Barrel Size | 0.49 in ID x 0.62 in OD |
| Barrel Type | Short |
| Color | Orange |
| Conductor Type | Stranded Copper |
| Finish | Tin Plated |
