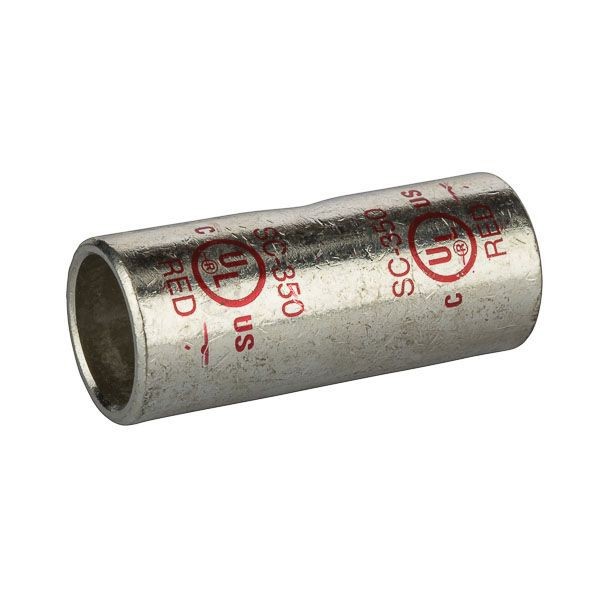

NSI SC-350 SC Series Short Barrel Compression Splice, 350 kcmil Stranded Conductor, 2.1 in L, Copper
NSI SC-350 SC Series Short Barrel Compression Splice, 350 kcmil Stranded Conductor, 2.1 in L, Copper
SKU: NSISC-350
Manufacturer Part Number: SC-350
UPC: 662381037121
Documents
Features
- Produced from high conductivity copper tubing
- Serrations indicate proper crimp locations
- Tin plated to provide corrosion resistance
- Marked with die index and color coded
- Suitable for use at voltages up to 35 kV provided connector is properly installed to cable manufacturer voltage stress relief instructions
- 5 kV is the maximum voltage in all bare splices
Specification
| Material | Copper |
|---|---|
| Specifications | 2-Conductor, 1-Pole |
| Temperature Rating | 90 deg C |
| Voltage Rating | 600 VAC |
| Standard & Approvals | cULus 155027, UL 486A/467, NEC 310.15, KM Approved |
| Color | White |
| Finish | Tin Plated |
| Application | Terminate, Splice and Tap Power Connector Applications |
| Type | Short Barrel |
| Series | SC Series |
| Length | 2.1 in |
| Conductor Type | Stranded |
| Dimensions | 0.66 in ID x 0.81 in OD |
| Conductor Size | 350 kcmil |
