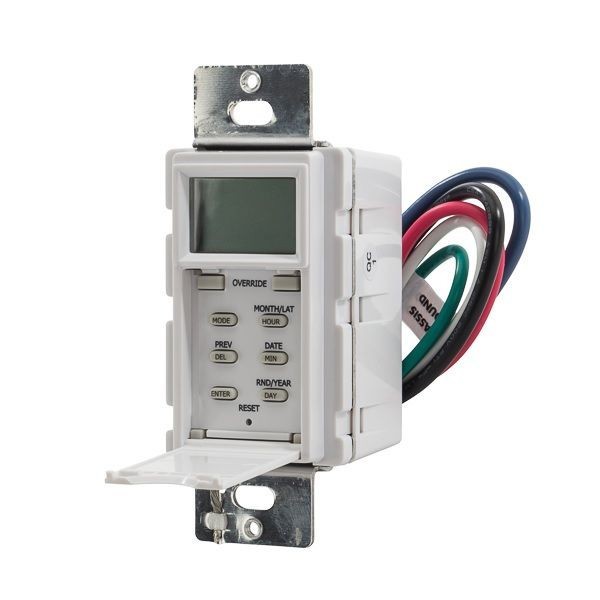

NSI Tork® SS721Z 3-Way Sunrise/Sunset Time Switch, 1 min to 7 days Setting, 120 to 277 VAC, 1/2 hp, SPST Contact, 1 Pole
NSI Tork® SS721Z 3-Way Sunrise/Sunset Time Switch, 1 min to 7 days Setting, 120 to 277 VAC, 1/2 hp, SPST Contact, 1 Pole
SKU: TORSS721Z
Manufacturer Part Number: SS721Z
UPC: 786261140272
Features
- 10 on and off pairs of set points for individual programs on each day of the week
- 11 day groups speed programming, minimum setting is 1 min
- Adjusts daily to changes in sunset time
- Sunset and sunrise times are adjustable from 10 to 60 deg C northern or southern latitudes
- Can be individually offset +/- 1 to 240 minutes for earlier or later operation
- Varies on and off times to create "lived-in" look when away
- Automatic adjustment (can be omitted)
- Automatic leap year compensation
- Until the next regularly scheduled on or OFF, automatic operation then resumes
- Does not run programs until set to AUTO (automatic) mode
- AM/PM clock format
- Permanent schedule retention
- Super capacitor provides 7-days of real time backup
- Control lighting contactors and 277 VAC loads
- Compatible with CFL lamp
- No minimum load requirement
- 12 AWG input/output, 16 AWG 3-way remote
- 50/60 Hz frequency rating
- Single gang wall plate mounting
- Single gang wall plate enclosure
Specification
| Mounting Type | Wall |
|---|---|
| Number Of Poles | 1 |
| Operation Mode | Astro 7 Days |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 16 A |
| Catalog ID | TORSS721Z |
| Contact Form | SPST |
| Dimensions | 5 in H x 3 in W |
| Display | LED |
| Enclosure Type | NEMA 3R |
| Series | SS721Z |
| Temperature Rating | 32 to 104 deg F |
| Type | 3 -Way Sunrise/Sunset |
| Voltage Rating | 120 to 277 VAC |
| Application | Outdoor Security, Interior Lights, Fans, Motors and Appliance Switch |
| Standard & Approvals | cULus Listed |
| Time Setting | 1 min to 7 days |
| Horsepower | 1/2 hp |
