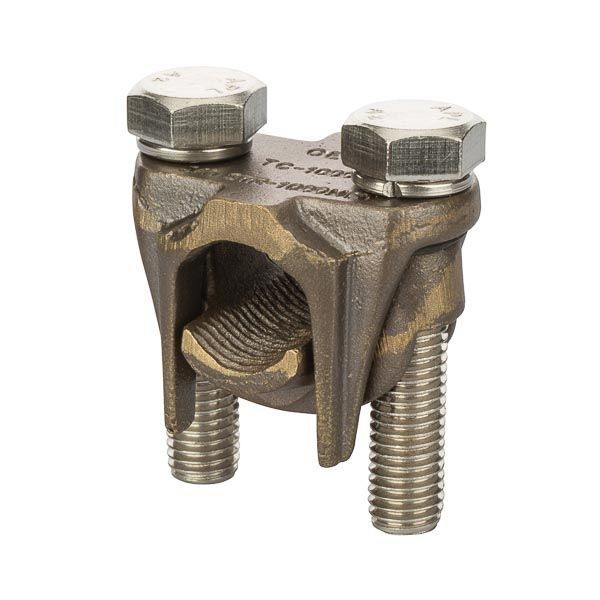

NSI TC1000 2-Bolt Tap Connector, 750 to 1000 kcmil Solid Copper Conductor, Bronze
NSI TC1000 2-Bolt Tap Connector, 750 to 1000 kcmil Solid Copper Conductor, Bronze
SKU: NSITC-1000
Manufacturer Part Number: TC1000
UPC: 662381021366
Documents
Features
- 2-bolt bronze tap connector 750 to 1000 kcmil 2-bolt bronze tap connectors are made of high strength bronze for heavy duty connections
- For use with copper to copper conductors
- Made from high strength bronze castings assurance against stress corrosion and season cracking
- Designed for heavy duty service connections
- The cap swivels to permit quick and easy installation of conductors
- Retaining rubber washer eliminates loose parts
- Silicon bronze hardware
- Flat back permits use as bus tap when used with longer bolts
- 1000 to 750 kcmil main wire, 2 AWG to 1000 kcmil solid tap wire
Specification
| Material | Bronze |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Bronze |
| Conductor Type | Solid Copper |
| Finish | Bronze |
| Series | TC Series |
| Temperature Rating | 90 deg C |
| Voltage Rating | 600 VAC |
| Application | Wire Termination Applications |
| Standard & Approvals | KM Approved |
| Tap Size | 2 AWG to 1000 kcmil |
| Dimensions | 3.818 in H x 2.204 in W |
| Conductor Size | 750 to 1000 kcmil |
| Catalog ID | NSITC-1000 |
| Type | 2-Bolt |
