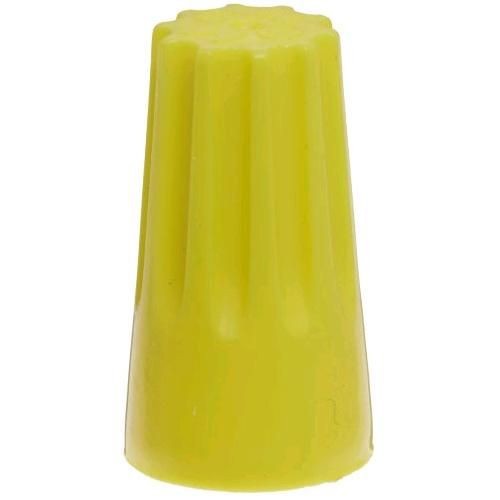

NSI Easy-Twist™ WC-Y-B Standard Twist-On Wire Connector, Fixed/Square Wire Spring, 22 to 10 AWG Copper Wire, Thermoplastic
NSI Easy-Twist™ WC-Y-B Standard Twist-On Wire Connector, Fixed/Square Wire Spring, 22 to 10 AWG Copper Wire, Thermoplastic
SKU: NSIWC-Y-B
Manufacturer Part Number: WC-Y-B
UPC: 662381140326
Documents
Features
- Sure-grip ribs improve gripping comfort
- Easy-twist standard twist-on wire connectors have a Flame-retardant UL 94V-2 thermoplastic shell that provides excellent electrical insulation
- Fixed, precise square wire spring provides secure gripping of conductors
- Deep skirt entry provides protection from flashover and shorts
- 1000 V maximum in fixtures and signs
- Compact design ensures proper installation, especially in tight spaces
- Threaded funnel entry guides the wires into the connector easily
- Pre-twisting of wires is not necessary
- Zinc-plated springs for low contact resistance
- For copper wire only
- 1-conductor, (3)20 AWG - (2) 12 AWG with (2) 14 AWG wire combinations
- 500/Bag
Specification
| Material | Thermoplastic Shell |
|---|---|
| Series | WC |
| Specifications | 0.236 in Top Dia |
| Spring Type | Fixed/Square Wire |
| Temperature Rating | 105 deg C |
| Type | Standard |
| Voltage Rating | 600 VAC |
| Wire Size | 22 to 10 AWG |
| Wire Type | Aluminum/Copper |
| Application | For Splicing Wire |
| Standard & Approvals | 231168 CSA Certified, RoHS Compliant, UL 94V-2 Flammability Rating , UL486C Listed |
| Dimensions | 0.969 in H x 0.551 in W |
| Color | Yellow |
