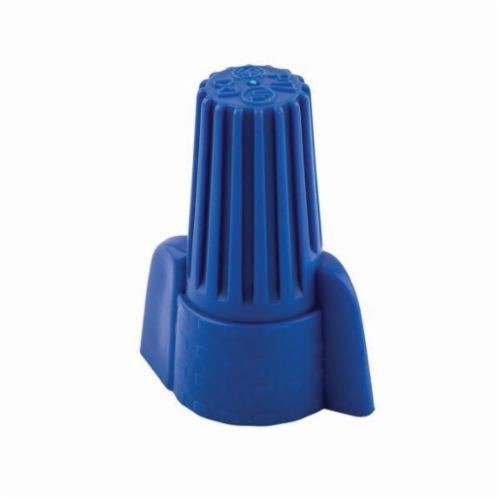

NSI Easy-Twist™ WWC-B-C Twist-On Wire Connector, Swept Back Winged Shell, Fixed/Square Wire Spring, 14 to 6 AWG Copper Wire, Thermoplastic
NSI Easy-Twist™ WWC-B-C Twist-On Wire Connector, Swept Back Winged Shell, Fixed/Square Wire Spring, 14 to 6 AWG Copper Wire, Thermoplastic
SKU: NSIWWC-B-C
Manufacturer Part Number: WWC-B-C
UPC: 662381361608
Documents
Features
- Easy-twist winged twist-on wire connectors have deep surface ridges to provide better grip
- Ergonomic, swept-back wing design provides handling comfort and increased torque ability
- Flame-retardant UL 94V-2 thermoplastic shell provides excellent electrical insulation
- Fixed, precise square wire spring provides secure gripping of conductors
- Deep skirt entry provides protection from flashover and shorts
- 1000 V maximum in fixtures and signs
- Compact design ensures proper installation, especially in tight spaces
- Threaded funnel entry guides the wires into the connector easily
- Pre-twisting of wires is not necessary
- Zinc-plated springs for low contact resistance
- 1-conductor, (2) 10 AWG with (1) 12 AWG - (3) 8 AWG with (1) 12 AWG wire combinations
- 50/Carton
Specification
| Minimum Order Qty | 1 |
|---|---|
| Order Interval | 1 |
| Color | Blue |
| Shell Style | Swept-Back Wing |
| Temperature Rating | 105 deg C |
| Voltage Rating | 600 VAC |
| Wire Size | 14 to 6 AWG |
| Application | For Splicing Wire |
| Standard & Approvals | 231168 CSA Certified, RoHS Compliant, UL 94V-2 Flammability rating, UL486C Listed |
| Specifications | 0.472 in Top Dia |
| Dimensions | 1.57 in H x 1.26 in W |
| Catalog ID | NSIWWC-B-C |
| Wire Type | Aluminum/Copper |
| Type | Flame-Retardant |
| Spring Type | Fixed/Square Wire |
| Series | WWC |
| Material | Thermoplastic Shell |
