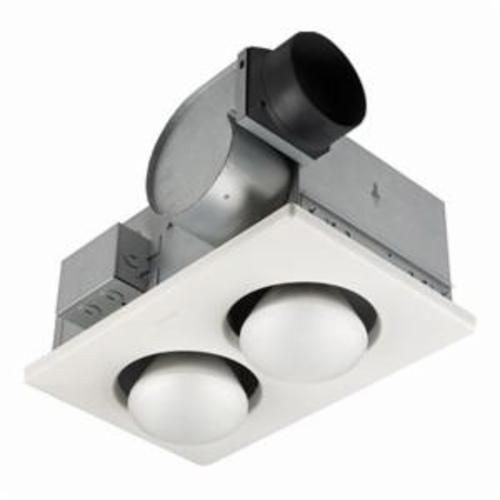

Broan® 164 Bulb Heater, 70 cfm, 4 in Dia Duct, 500 W, 120 VAC, 500 W
Broan® 164 Bulb Heater, 70 cfm, 4 in Dia Duct, 500 W, 120 VAC, 500 W
SKU: BRO164
Manufacturer Part Number: 164
UPC: 026715002603
Documents
Features
- BR40 infrared bulb, IC type
- 15-5/8 in in grille length
- 10-1/4 in grille width
- 2 light bulb, Infrared lighting type
- UL listed for 60 deg C wiring
- 60 ft bathrooms up to (X) square feet
- Horizontal duct direction, 4 in duct size, 3.5 sones
- 2 x 8 in minimum construction space required
- Bulb heater/fans provide silent warmth and superior ventilation in a compact package
- Heat and ventilation functions may be controlled separately or in combination so you're always in control of the environment
- Very low profile, white polymeric grille blends into most ceilings
- 70 CFM fan provides excellent ventilation at a quiet 3.5 sones and will keep your bath free from steam or bathroom odors
- Use 250W BR40 size infrared bulbs (not included) for comfortable heating performance
- Quiet, highly efficient polymeric blower wheels maintain consistent power, while polymeric dampers prevent backdrafts and eliminate mechanical noise for reliable operation and a comfortable environment
Specification
| Height | 8.375 in |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 4.5 A |
| Catalog ID | BRO164 |
| Depth | 6-3/8 in |
| Finish | White Polymeric |
| Shape | Rectangular Grille |
| Type | Double |
| Voltage Rating | 120 VAC |
| Wattage | 500 W |
| Width | 14.25 in |
| Application | For bath up to 60 sq ft |
| Standard & Approvals | UL Listed, HVI Certified |
