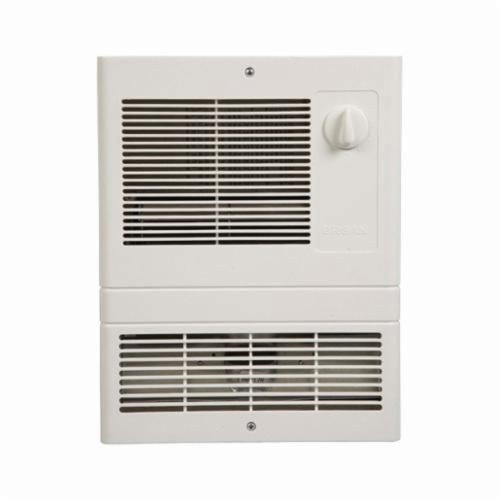

Broan® 9810WH Fan Forced High-Capacity Heater, 1.05 kW, 120/240 VAC
Broan® 9810WH Fan Forced High-Capacity Heater, 1.05 kW, 120/240 VAC
SKU: NUT9810WH
Manufacturer Part Number: 9810WH
UPC: 784891328114
Short Description
Features
- Factory wired at 1000 W at 120 VAC, it can be easily converted to 1000 W at 240 VAC
- Attractive white grille - exceptionally durable and heat resistant
- Adjustable, front-mounted thermostat offers a simple way to control the level of heat
- Quiet fan and down flow action circulates heated air quickly
- Long-life bearings with extra large oil reservoir, hang tab aids installation
- Tangential impeller type, coiled resistance wire element type, nickel-chromium element material, thermally protected, shade pole, sleeve bearings motor, on/off switch provided as part of thermostat switch type
- 7-1/8 in x 2-3/8 in impeller
- 14-3/4 in H x 11-9/16 in W x D Grille
- 12-1/2 in H x 10-1/2 in W x 3-3/8 in D Housing
- Polymeric grille
Specification
| Material | Steel |
|---|---|
| Mounting Type | Wall |
| Voltage Rating | 120/240 VAC |
| Standard & Approvals | UL Listed |
| Color | White |
| Finish | Galvanized Steel |
| Capacity | 3413 Btu |
| Amperage Rating | 4.5/9 A |
| Application | For Entrance Ways, Lobbies, Vestibules or any Area Requiring High Wattage Heating |
| Type | Fan-Forced High-Capacity |
| Power Rating | 1050 W |
