Broan® LoSone Select® L100 High Capacity Ceiling Exhaust Ventilator, 112 cfm, 6 in Dia Duct, 120 VAC, 1.1 A, Domestic

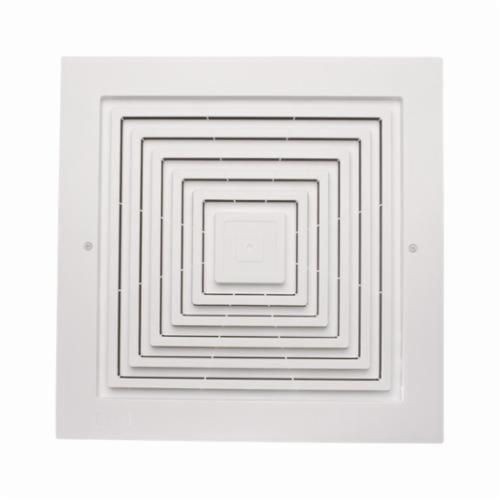

Selected L150Broan® LoSone Select® L200 High Capacity Ceiling Exhaust Ventilator, 210 cfm, 8 in Dia Duct, 120 VAC, 1.8 A, Domestic
L150Broan® LoSone Select® L200 High Capacity Ceiling Exhaust Ventilator, 210 cfm, 8 in Dia Duct, 120 VAC, 1.8 A, Domestic

Documents

Short Description

Broan high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed.

Features

  • Resilient anti-vibration motor mounts
  • Dynamically balanced polymeric centrifugal blower wheel for quiet, efficient performance
  • Low profile styling grille blends with any decor
  • Can be ducted horizontally or at 0.1 in SP vertically with in-line ducting available with separate adapter, rugged 20 ga galvanized steel housing with 0.5 in acoustic insulation inside
  • 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements, automatic backdraft damper located within duct connector
  • May be installed as an in-line ventilator with addition of accessory kit Model 961L, for controlling use model 57V (ivory)/57W (white) electronic variable speed control or model 59V (ivory)/59W (white) 60 minute time control or model 61V (ivory)/61W (white) 15 minute time control or model 71V (ivory)/71W (white) 12 hour time control
  • Plug-in permanently lubricated thermally protected motor designed for continuous operation
  • Low rpm for quiet operation
  • 115 cfm at 0.1 in SP horizontal, 117 cfm at 0.1 in SP vertical
  • 109 cfm at 0.125 in SP horizontal, 0.9 sones, 112 cfm at 0.1 in SP at 0.125 in SP vertical, 1 sones
  • Round duct
  • UL Listed for use over bathtubs and showers when connected to a GFCI circuit
  • Square shape grille
  • 640 rpm AC motor

Specification

Frequency Rating
60 Hz
Grille Length
14 in
Grille Material
Polymeric
Grille Width
14 in
Housing Height
11-3/4 in
Housing Length
12-1/4 in
Housing Material
Galvanized Steel
Housing Width
12-1/4 in
Mounting Type
Ceiling/Wall
Type
High Capacity
Voltage Rating
120 VAC
Application
For Conference, Commercial Buildings and Public Restroom
Standard & Approvals
AMCA Certified, cUL Listed, UL Listed
Amperage Rating
1.1 A
Color
White
Duct Diameter
6 in
Flow Rate
109 cfm at 0.125 in SP Horizontal, 112 cfm at 0.125 in SP Vertical
