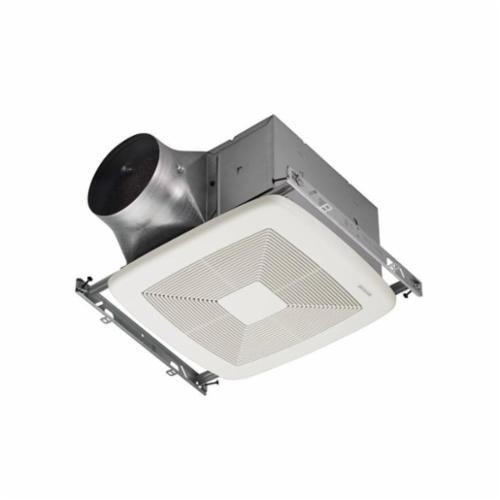

Broan® ULTRA GREEN™ XB110 Single-Speed DC Motor Ventilation Fan, 110 cfm, 6 in Dia Duct, 7.7 W, 120 VAC, 0.2 A, Domestic

Selected XB80Broan® ULTRA GREEN™ XB110 Single-Speed DC Motor Ventilation Fan, 110 cfm, 6 in Dia Duct, 7.7 W, 120 VAC, 0.2 A, Domestic
XB80Broan® ULTRA GREEN™ XB110 Single-Speed DC Motor Ventilation Fan, 110 cfm, 6 in Dia Duct, 7.7 W, 120 VAC, 0.2 A, Domestic

Documents

Short Description

BROAN ULTRA GREEN™ Series Fans deliver everything you wished for in a bath fan - premium ventilation to help reduce airborne pollutants, extremely quiet operation, energy efficiency, consistent power and most impressively, the fastest, easiest, most universal installation available. These fans are ideal for both spot ventilation in humid bathrooms, as well as continuous ventilation to meet various building codes and Green Building standards around the United States.

Features

  • Less than 0.3 sones sound level
  • UltraGreen energy saving DC motor - efficiency well beyond energy star requirements, can be used to comply with ashrae 62.2, LEED, energy star for homes and CA Title 24
  • UltraSilent sound technology - HVI certified best-achievable lesser than 0.3 sone level provides nearly silent operation for a relaxing environment, state-of-the-art blower and duct outlet design smoothes airflow, high tech DC motor designed for nearly silent operation
  • UltraSmart™ control technology powerful operation maintained over a wide range of real-world installations (CFM ratings maintained through at least 0.25 in SP), rated for continuous operation
  • UltraQuick installation technology - unique telescoping mounting frame (spans upto 24 in on-center framing) fits through retrofit drywall opening to allow easy installation from the room side
  • No attic access needed
  • Captive screws allow for easy new construction installation, mounting frame positioning tabs provide easy vertical positioning for new construction
  • Mounting frame positioning tabs provide easy vertical positioning for new construction
  • Easy to insert and remove snap-in housing
  • No screws required, easy to insert and remove snap-in blower, inside or outside duct connector and knockout plate mounting provides flexibility for new construction or retrofit
  • 110 cfm at 0.10 in/0.25 in flow rate
  • UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
  • Rectangular grille

Specification

Frequency Rating
60 Hz
Grille Length
13 in
Grille Material
Polymeric
Grille Width
13-3/4 in
Housing Height
7-5/8 in
Housing Length
10-1/2 in
Housing Width
11-3/8 in
Mounting Type
Ceiling
Power Rating
7.7 W
Series
ULTRA GREEN™
Type
Single Speed
Voltage Rating
120 VAC
Standard & Approvals
Energy Star Certified, HVI 2100 Certified, UL Listed
Amperage Rating
0.2 A
Color
White
Duct Diameter
6 in
Flow Rate
110 cfm at 0.10 in
