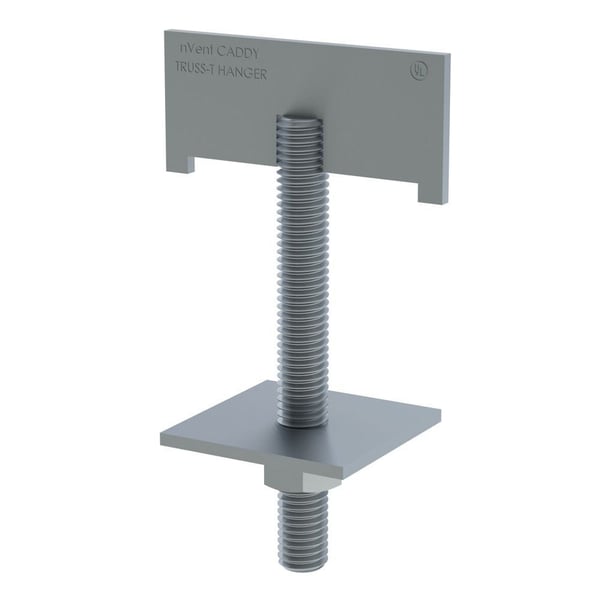

nVent CADDY CTH037BC Bottom Chord Truss-T Bar Joist Hanger, Steel
nVent CADDY CTH037BC Bottom Chord Truss-T Bar Joist Hanger, Steel
SKU: CADCTH037BC
Manufacturer Part Number: CTH037BC
UPC: 782856986546
Features
- Easily installs on the bottom chord of engineered open web bar joists from underneath, limiting overhead work
- Innovative attachment effortlessly slides through the middle slot of open web bar joists and quickly locks into place when put under load
- Installation of the complete, self-contained system can be accomplished with one hand and requires no additional special tools
- The unique design of the nVent CADDY truss T-hanger does not need to be tightened like a traditional beam clamp, providing greater adjustability and speed during system alignment
- Pre-fabricated single pipe hanger and multi-pipe/tube trapeze assemblies can be prefabricated on the ground or in the shop and easily hung by the installer
- Concentrically loading the bar joist chord eliminates torsion and distortion, adhering to the strict rules established by the steel joist institute (SJI)
- The increased load carrying capacity results in the product being UL listed to support a maximum of 8 in SCH 40 pipe
- Included square washer with integrated threaded nut eliminates the need for loose hardware
Specification
| Load Capacity | 1200 lb |
|---|---|
| Material | Steel |
| Specifications | 3/8 in Rod, Gray |
| Type | Bottom Chord |
| Application | Fire Sprinkler, HVAC, Plumbing, Refrigeration, Electrical Fixing and Fastening Applications |
| Finish | Pre-Galvanized |
| Includes | Square Washer |
