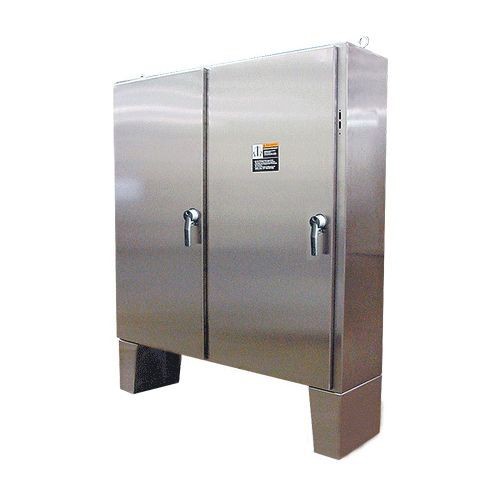

nVent HOFFMAN A60X4912SSLPN4 A21S4 2-Door Disconnect Enclosure, 60.12 in L x 49-3/4 in W x 12.12 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A60X4912SSLPN4 A21S4 2-Door Disconnect Enclosure, 60.12 in L x 49-3/4 in W x 12.12 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
SKU: HOFA60X4912SSLPN4
Manufacturer Part Number: A60X4912SSLPN4
UPC: 783510110970
Short Description
Features
- Manufactured from 12 ga 304 stainless steel
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough collar excludes liquids and contaminants
- Removable center posts permit easy panel installation
- Heavy gauge continuous hinges
- Heavy duty lifting eyes are 316 stainless steel
- Data pocket is high impact thermoplastic
- 15 in floor stands are welded to enclosure
- Seamless foam in place gasket provides oil-tight and dust tight seal against contaminants
- Heavy duty three-point latching mechanism operated by type 316 stainless steel POWERGLIDE™ padlocking handle on all doors
- Master door is right hand door on X enclosures and left hand door on CPX enclosures
- Type 316 stainless steel handle with defeater on master door
- Type 316 stainless steel handle (non-defeater) on slave door
- Mechanical interlock activated by master door prevents slave doors from being opened first, doors can be closed in any order
- Preferred cutout on right flange provides mounting for most disconnect operators
- Bonding provision on door, grounding stud on body
Specification
| Length | 60.12 in |
|---|---|
| Lock | 3-Point Latch/Padlock Handle |
| Material | 304 Stainless Steel |
| Mounting Type | Freestanding |
| NEMA Rating | NEMA 4X/IP66 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | HOFA60X4912SSLPN4 |
| Cover Type | Continuous Hinged |
| Depth | 12.12 in |
| Finish | Brushed |
| Type | 2-Door |
| Application | Industrial Applications |
| Standard & Approvals | cUL Listed per CSA C22.2 File No. 94 File No. E61997, CSA File No. 42186, IEC 60529, RoHS Compliant, UL 508A File No. E61997 |
| Width | 49-3/4 in |
| Series | A21S4 |
| Panel Size | 44 in W x 56 in H |
