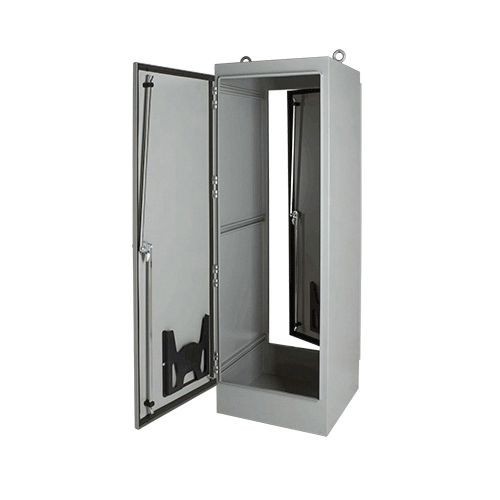

nVent HOFFMAN A907224FSD A30 2-Door Single Access Enclosure, 90.06 in L x 72.06 in W x 24.06 in D, NEMA 12/IP55 NEMA Rating, Steel

Pick Up Only
Selected A604818FSDnVent HOFFMAN A907224FSD A30 2-Door Single Access Enclosure, 90.06 in L x 72.06 in W x 24.06 in D, NEMA 12/IP55 NEMA Rating, Steel
A604818FSDnVent HOFFMAN A907224FSD A30 2-Door Single Access Enclosure, 90.06 in L x 72.06 in W x 24.06 in D, NEMA 12/IP55 NEMA Rating, Steel

Documents

Short Description

Available with front or front and rear access, these Type 12 enclosures have sturdy unibody construction and flexible internal mounting options.

Features

  • Seams continuously welded and ground smooth, no holes or knockouts
  • Stiffeners on back of 2-door enclosures maintain flatness and increase rigidity
  • Lifting eyes for easy handling
  • 3-point latches operated by oiltight keylocking handle
  • Concealed, easy to remove hinges
  • Data pockets are high impact thermoplastic
  • Internal mounting channels welded horizontally to sides at top, bottom and center
  • Optional panels and rack mount angles can be mounted anywhere along channels
  • Oil-resistant door gasket
  • Bonding provision on door
  • Provision for mounting fluorescent light
  • 12 ga steel

Specification

Length
90.06 in
Lock
3-Point Latch/Keyed Handle
Material
Steel
Mounting Type
Freestanding
NEMA Rating
NEMA 12/IP55
Series
A30
Type
2-Door Single Access
Width
72.06 in
Standard & Approvals
cUL Listed per CSA C22.2 File No. 94 File No. E61997, E.I.A. RS310D, CSA File No. 42186, IEC 60529, UL 508A Listed File No. E61997
Color
White
Cover Type
Hinged
Depth
24.06 in
Finish
Polyester Powder Painted
