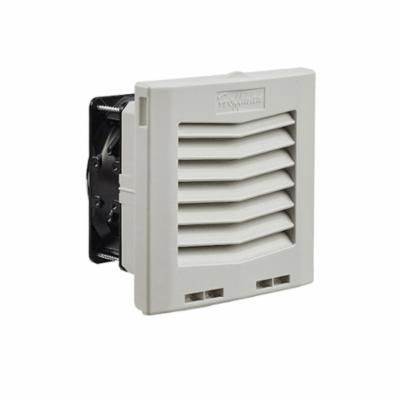

nVent HOFFMAN HF0516414 MCLF Filter Fan, 115 VAC, 0.16/0.14 A, 11/10 W, 35 cfm, NEMA 12/IP54 Enclosure

Selected HF0516414nVent HOFFMAN HF0516414 MCLF Filter Fan, 115 VAC, 0.16/0.14 A, 11/10 W, 35 cfm, NEMA 12/IP54 Enclosure
HF0516414nVent HOFFMAN HF0516414 MCLF Filter Fan, 115 VAC, 0.16/0.14 A, 11/10 W, 35 cfm, NEMA 12/IP54 Enclosure

Short Description

HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement.

Features

  • Click fit design quickly installs into enclosure wall, no tools or screws required
  • Opens with the flick of a finger for easy filter replacement
  • Reverse airflow option on HF13 models available to push/pull air through higher static pressure
  • Standard rope gasket provides proper seal to the enclosure
  • Similar cutout sizes as other filter fan manufacturers
  • Terminal block connections
  • Hinged grille remains attached after opening

Specification

Minimum Order Qty
1
Order Interval
1
Catalog ID
HOFHF0516414
Standard & Approvals
cUL Listed, UL File No. E482010, CE/EAC Certified
Power Rating
11/10 W
Sound Level
40/44 dB
Voltage Rating
115 VAC
Airflow Rate
35 cfm
Amperage Rating
0.16/0.14 A
Enclosure Type
NEMA 12/IP54
Grille Material
ABS
Mounting Type
Side
Dimensions
6.15 in H x 6.16 in W x 3.98 in D
Series
MCLF
Speed
2600/2900 rpm
