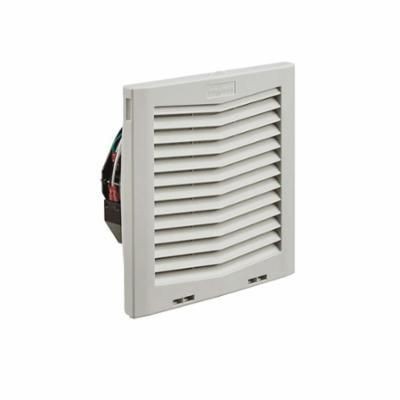

Hoffman HF1016414 MCLF Filter Fan, 115 VAC, 0.38/0.36 A, 35/32 W, 159 cfm, NEMA 12/IP54 Enclosure
Hoffman HF1016414 MCLF Filter Fan, 115 VAC, 0.38/0.36 A, 35/32 W, 159 cfm, NEMA 12/IP54 Enclosure
SKU: HOFHF1016414
Manufacturer Part Number: HF1016414
UPC: 783510342036
Short Description
Features
- Click fit design quickly installs into enclosure wall, no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cutout sizes as other filter fan manufacturers
- Terminal block connections
- Hinged grille remains attached after opening
Specification
| Power Rating | 35/32 W |
|---|---|
| Sound Level | 53/56 dB |
| Speed | 2700/3200 rpm |
| Voltage Rating | 115 VAC |
| Standard & Approvals | cUL Listed, UL File No. E482010, CE/EAC Certified |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Air Flow Rate | 159 cfm |
| Amperage Rating | 0.38/0.36 A |
| Catalog ID | HOFHF1016414 |
| Dimensions | 10.13 in H x 10.14 in W x 4.68 in D |
| Enclosure Type | NEMA 12/IP54 |
| Grille Material | ABS |
| Mounting Type | Side |
| Application | Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Controls and Wind Energy Systems Applications |
| Series | MCLF |
