NX Lighting Controls WSPEMUNV Standard Occupancy Sensor, 120/277/347 VAC, Digital Passive Infrared Sensor, Aisle/Half Aisle Coverage, 180/360 deg Viewing

Selected NX LIGHTING CONTROLS WSPEM480 D BK

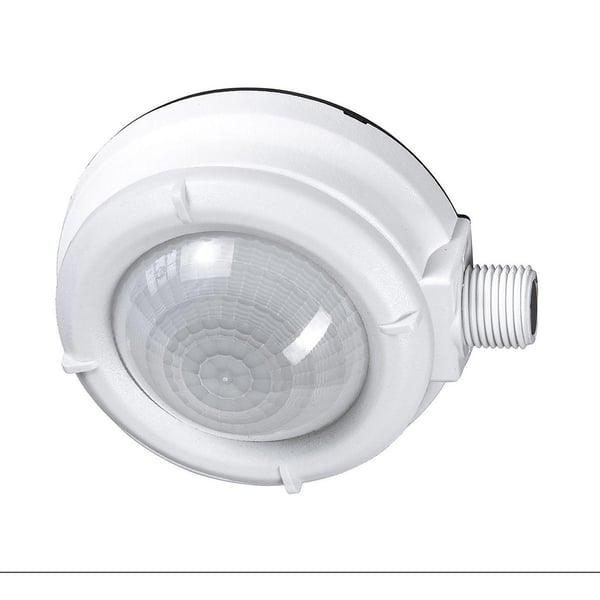

NX LIGHTING CONTROLS WSPEM480 D BK

Documents

Short Description

The WASP™ 2 indoor/outdoor occupancy sensor is specifically designed for ON/OFF control of high bay fixtures in warehouse, distribution centers and similar facilities. The WASP™ 2 sensor is also available for low mount applications when using the appropriate lens. The sensor is available in end mount and surface mount versions with either single or dual outputs. All WASP™ 2 sensors feature a daylight sensor which can be used to increase energy savings by turning off lights when there is sufficient natural light detected. These sensors also have a unique feature known as "smart cycling" which ensures even lamp burn time within the fixture. Using the "smart cycling" feature, the amount of time each lamp is burned is maintained and kept balanced.

Features

  • Supports mounting heights up to 45 ft
  • Multiple (single and dual) output versions
  • Unique Smart Cycling for improved lamp life
  • Interchangeable area and aisle lens options
  • Low-temperature (-40 deg C)/water-tight versions available

Specification

Power Rating
0 to 800/0 to 600/0 to 1200/0 to 1500 W
Material
Injection Molded Plastic
Color
Black/Gray/White
Voltage Rating
120/277/347 VAC
Series
WSP
Type
Standard
Temperature Rating
32 to 149 deg F
Enclosure Type
IP65
Sensor Type
Digital Passive Infrared
Dimensions
4 in Dia x 1-1/2 in H
Viewing Angle
180/360 deg
Time Delay
8 s Test Mode, 4/8/16/30 min Timeouts Primary, 30/60/90 min Timeouts Secondary
Interface
12-Pin DIP Switch
Coverage
Aisle/Half Aisle
