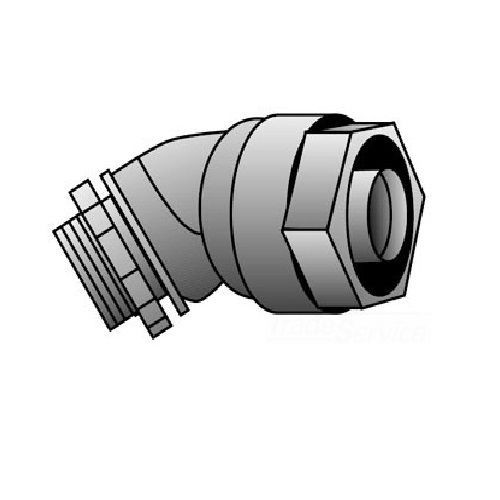

O-Z/Gedney 4Q-4100 Concretetight Liquid Tight Oiltight Raintight Conduit Connector, 1 in Trade, 45 deg, Malleable Iron, Zinc Electroplated

Selected O-Z/Gedney 4Q-4100 Concretetight Liquid Tight Oiltight Raintight Conduit Connector, 1 in Trade, 45 deg, Malleable Iron, Zinc Electroplated
O-Z/Gedney 4Q-4100 Concretetight Liquid Tight Oiltight Raintight Conduit Connector, 1 in Trade, 45 deg, Malleable Iron, Zinc Electroplated

Documents

Short Description

For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquid-tight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.

Features

  • Compression x Tapered MNPT Hub Connection
  • O-Z/Gedney cuttings are used with liquid-tight flexible metal conduit to provide a dependable connection and are suitable for use in wet locations
  • Compact, slim diameter with small turning radius, Furnished with locknut and knockout sealing ring
  • UL listed NEMA type 4 when installed into a NPT threaded entry or UL listed conduit hub
  • Furnished with locknut and knockout sealing ring
  • Liquid tight/raintight/oiltight/Concrete tight
  • Suitable for grounding through 1-1/4 IN trade size (for larger trade sizes, an internal or external equipment bonding conductor is required)
  • Intrinsically safe
  • Inspection windows in ferrule to ensure full engagement
  • Reusable ferrule
  • 1/2 in L thread
  • Malleable Iron Body and Nut, Steel Ferrule

Specification

Material
Malleable Iron
Suitable For Use With
Liquidtight Flexible Metallic Conduit
Trade Size
1 in
Standard & Approvals
UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20, RoHS Complaint
Dimensions
2-1/2 in H x 1-3/4 in W
Angle
45 deg
Finish
Zinc Electroplated
