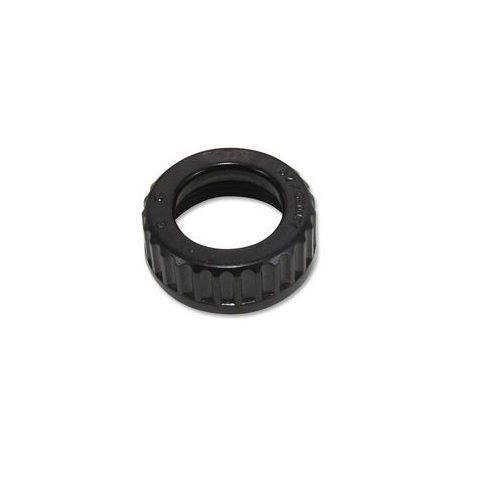

O-Z/Gedney A-250 Type A Non-Grounding Conduit Bushing, 2-1/2 in Trade, Phenolic

Selected A-250O-Z/Gedney A-250 Type A Non-Grounding Conduit Bushing, 2-1/2 in Trade, Phenolic
A-250O-Z/Gedney A-250 Type A Non-Grounding Conduit Bushing, 2-1/2 in Trade, Phenolic

Documents

Short Description

O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.

Features

  • Non-grounding
  • High impact black thermoscutting phenolic bushings, with at 150 deg C UL temperature rating, that will not soften, melt or burn

Specification

Material
Phenolic
Minimum Order Qty
1
Order Interval
1
Color
Black
Dimensions
3-3/8 in OD x 7/8 in W
Trade Size
2-1/2 in
Application
For threaded Rigid/IMC conduits
Temperature Rating
302 deg F
Catalog ID
OZGA-250
Standard & Approvals
UL File Number E-11853, CSA 11584, RoHS Complaint
Type
Type A Threaded
