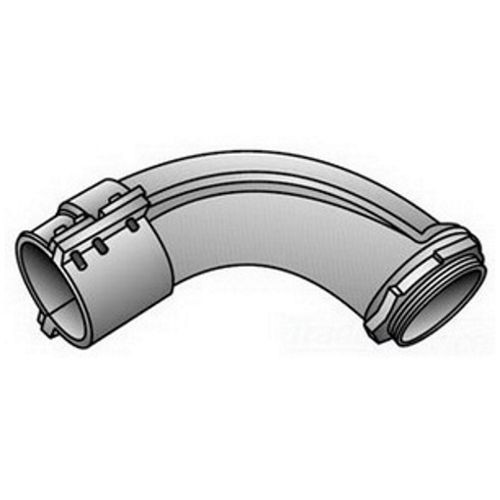

O-Z/Gedney AC-350 Type AC Squeeze Cable Connector With Locknut, 3-1/2 in Trade, 3-45/64 to 4-5/32 in Cable Openings, Malleable Iron, Electroplated Zinc
O-Z/Gedney AC-350 Type AC Squeeze Cable Connector With Locknut, 3-1/2 in Trade, 3-45/64 to 4-5/32 in Cable Openings, Malleable Iron, Electroplated Zinc
SKU: OZGAC-350
Manufacturer Part Number: AC-350
UPC: 783126015850
Features
- All center stopped
- Furnished with locknuts
Specification
| Material | Malleable Iron |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Angle | 90 deg |
| Finish | Electroplated Zinc |
| Trade Size | 3-1/2 in |
| Standard & Approvals | CSA 9795, CSA 11584, CSA 584, CSA C22.2 No. 18, UL 514B, UL File No. E11852, UL File No. E11853, NEC 501-4(b) Class I Division II, NEC 350-5, Federal Specification W-F-406E |
| Application | For used to ground and secure armored cable and flexible metal conduit to boxes and enclosure, non-metallic and service entrance cables |
| Type | Type AC Squeeze |
| Connection Type | Male NPS Hub x Screw Clamp |
| Catalog ID | OZGAC-350 |
| Cable Type | Armored/Metal Clad/NM/SE |
| Cable Openings | 3-45/64 to 4-5/32 in |
