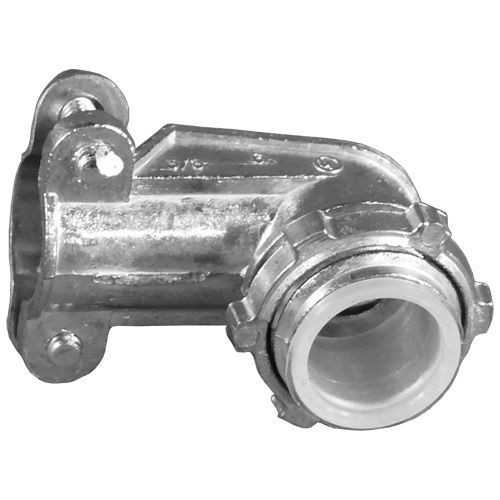

O-Z/Gedney AC-38 Type AC Squeeze Conduit Connector With Locknut, 3/8 in Trade, 17/32 to 39/64 in Cable Openings, For Use With Armored/FMC Cable, Malleable Iron, Zinc Electroplated

Selected AC-38O-Z/Gedney AC-38 Type AC Squeeze Conduit Connector With Locknut, 3/8 in Trade, 17/32 to 39/64 in Cable Openings, For Use With Armored/FMC Cable, Malleable Iron, Zinc Electroplated
AC-38O-Z/Gedney AC-38 Type AC Squeeze Conduit Connector With Locknut, 3/8 in Trade, 17/32 to 39/64 in Cable Openings, For Use With Armored/FMC Cable, Malleable Iron, Zinc Electroplated

Documents

Features

  • Male NPS hub x screw clamp connection
  • 7/16 in thread length
  • Centre stopped
  • Zinc Electroplated

Specification

Material
Malleable Iron
Suitable For Use With
Armored Cable and Flexible Metal Conduit
Trade Size
3/8 in
Type
Type AC
Application
For grounding and securing armored cable and flexible metal conduit to boxes and enclosures
Standard & Approvals
UL 514B/E11853 Listed, CSA 9795/11584/C22.2 No 18 Certified, Federal Specification W-F-406E, NEC 501-4(b) Class I Division II, NEC 350-5, NEMA FB-1
Dimensions
1-3/8 in L x 1-1/4 in W
Angle
45 deg
Cable Openings
17/32 - 39/64 in
Finish
Zinc Plated
