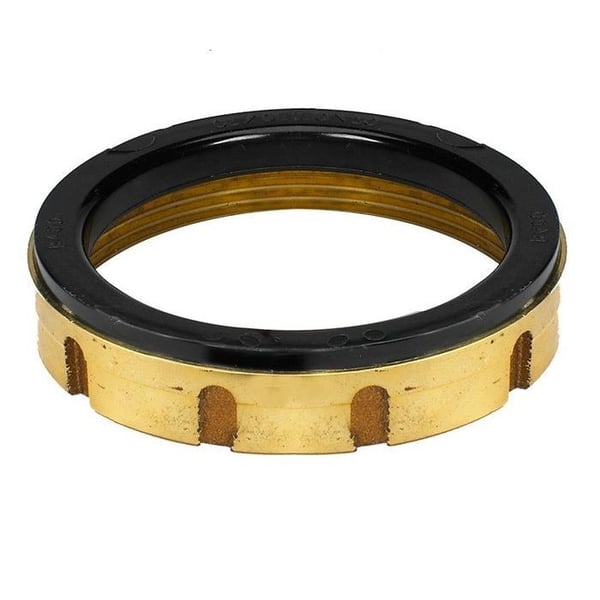

O-Z/Gedney B-350 Type B Conduit Bushing, 3-1/2 in Trade, Malleable Iron, Zinc Plated

Selected O-Z/Gedney B-350 Type B Conduit Bushing, 3-1/2 in Trade, Malleable Iron, Zinc Plated
O-Z/Gedney B-350 Type B Conduit Bushing, 3-1/2 in Trade, Malleable Iron, Zinc Plated

Short Description

O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.

Features

  • O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration
  • They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress
  • Molded on high impact phenolic thermoscutting insulation
  • Positive metallic conduit stop
  • Type B insulated bushings of malleable iron or steel, with conduit end stop and integrally molded non-combustible phenolic insulated surfaces rated 150 deg C shall be used on the ends of all raceways containing number 4 or larger conductors

Specification

Material
Malleable Iron
Temperature Rating
302 deg F
Trade Size
3-1/2 in
Finish
Zinc Plated
Dimensions
4-1/2 in OD x 1 in W
Standard & Approvals
UL File Number E-11853, CSA 011584, UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E
Application
For threaded Rigid/IMC conduits
Type
Type B Threaded
