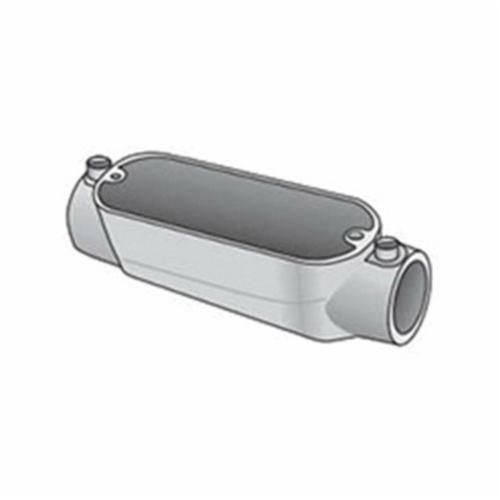

O-Z/Gedney C75ATW Type-C Conduit Outlet Body, 3/4 in Hub, 7.1 cu-in Capacity, Die Cast Copper Free Aluminum, Aluminum Enamel

Selected C200ATWO-Z/Gedney C75ATW Type-C Conduit Outlet Body, 3/4 in Hub, 7.1 cu-in Capacity, Die Cast Copper Free Aluminum, Aluminum Enamel
C200ATWO-Z/Gedney C75ATW Type-C Conduit Outlet Body, 3/4 in Hub, 7.1 cu-in Capacity, Die Cast Copper Free Aluminum, Aluminum Enamel

Documents

Short Description

O-Z/Gedney conduit bodies, covers and gaskets provide access to conductors for pulling, splicing, maintenance, and future changes and upgrades. They allow connection of straight conduit runs, branch conduit runs and 90 deg bends. Covers and gaskets can be ordered separately, or the conduit bodies, covers and gaskets can be ordered as a complete assembly.

Features

  • Slotted hex head steel hardened cup-point set screw for EMT
  • Internal volume and maximum wire clearly marked on castings
  • Serve as pulling fittings, make bends in conduit system
  • Provide openings for splicing, connect and change direction of conduit runs
  • Connect and change direction of conduit runs, allow connections for branch runs
  • Permit access to conductors for maintenance
  • Set screw design
  • Raintight when used with gasketed covers
  • Straight hub placement, side access opening
  • Die Cast Copper Free Aluminum

Specification

Hub Size
3/4 in
Material
Aluminum
Number of Hubs
2
Minimum Order Qty
1
Order Interval
1
Capacity
7.1 cu-in
Catalog ID
OZGC75ATW
Connection Type
Screw
Dimensions
5-5/8 in L x 1-1/2 in W x 1-5/8 in H
Enclosure
NEMA FB-1/FB-2.10
Finish
Aluminum Enamel
Type
Type C
Standard & Approvals
UL 514A Listed, CSA C22.2 Certified, Federal Specification A-A-50563
Application
For EMT thinwall conduit
