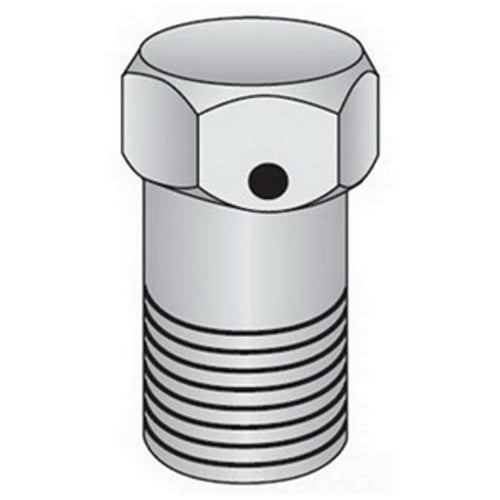

O-Z/Gedney DB-50 Type DB Conduit Breather/Drain, 1/2 in, Stainless Steel

Selected Data-Spec SheetO-Z/Gedney DB-50 Type DB Conduit Breather/Drain, 1/2 in, Stainless Steel
Data-Spec SheetO-Z/Gedney DB-50 Type DB Conduit Breather/Drain, 1/2 in, Stainless Steel

Documents

Short Description

These O-Z/Gedney valves can be used as either a drain or breather. When installed at the top of an enclosure, the valve acts as a breather. When installed in the bottom of an enclosure it acts as a drain for moisture inside the enclosure.

Features

  • Tapered NPT connection
  • Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups F, G, Class III

Specification

Material
Stainless Steel
Size
1/2 in
Type
Type DB
Application
Use as a drain or breather valve for enclosures in hazardous locations
Standard & Approvals
UL File Number E-34997, Hazardous Locations: Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups F, G, Class III, CSA 009795, Applicable Third Partys: UL 886, CSA C22.2 Number 30 NEC Articles 500-503 and 505
Dimensions
1 in OD x 1-1/2 in L
