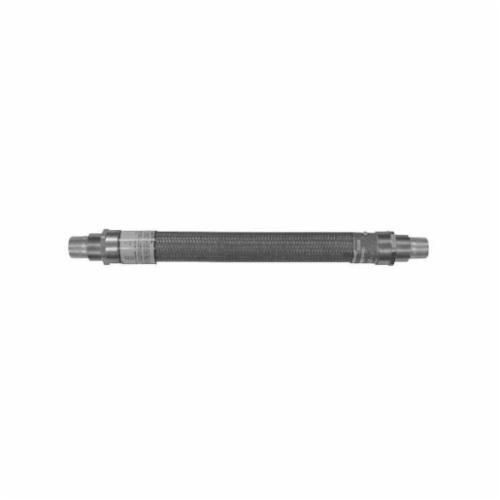

O-Z/Gedney ECGJH-75-24 Dust-Ignitionproof Explosionproof Flexible Watertight Conduit Coupling, 3/4 in, For Use With IMC/Threaded Rigid Metallic Conduit, Brass/Bronze, Natural

Selected ECGJH-75-24O-Z/Gedney ECGJH-75-24 Dust-Ignitionproof Explosionproof Flexible Watertight Conduit Coupling, 3/4 in, For Use With IMC/Threaded Rigid Metallic Conduit, Brass/Bronze, Natural
ECGJH-75-24O-Z/Gedney ECGJH-75-24 Dust-Ignitionproof Explosionproof Flexible Watertight Conduit Coupling, 3/4 in, For Use With IMC/Threaded Rigid Metallic Conduit, Brass/Bronze, Natural

Documents

Short Description

Every O-Z/Gedney electrical product is built to pass a simple test. Time. O-Z/Gedney has over 150 years of experience in outfitting electrical infrastructure in commercial and industrial applications, with solutions that ensure reliable and durable installations to help process our food, clean our water, generate our power and get us safely from place to place. Our materials, field research and design innovation come together in products that are unsurpassed for quality.

Features

  • 12 in minimum bending radius
  • 10 in flexible length
  • Suitable for ground path
  • 149 deg C Maximum temperature rating
  • Explosionproof, dust-Ignition proof watertight
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Heavy duty design resists mechanical abuse
  • Electrical conductivity equal to rigid conduit on a similar length basis - no bonding jumper required
  • Interior insulating liner protects conductors from abrasion under vibrating conditions
  • Both end fittings are female, each furnished with a removable male nipple
  • Suitable for wet locations
  • Brass tubing and bronze outer braid with insulating liner

Specification

Material
Brass
Minimum Order Qty
1
Order Interval
1
Finish
Natural
Size
3/4 in
Type
Flexible
Series
ECGJH
Dimensions
1-3/4 in OD x 24 in L
Catalog ID
OZGECGJH-75-24
Includes
Removable Close Nipples
Standard & Approvals
UL File No E-34997, CSA 009795, Class I, Division 1, 2, Groups A, B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, IIC; Class II, Division 1, 2, Groups E, F, G, Class III, Applicable Third Party Standards: UL 886, CSA C22.2 No.30, NEC Articles 500-503 and 505
Application
For hazardous locations to isolate conduit systems from vibration and/or movement or to make difficult bends
Suitable For Use With
Threaded IMC/Rigid Metal Conduits
