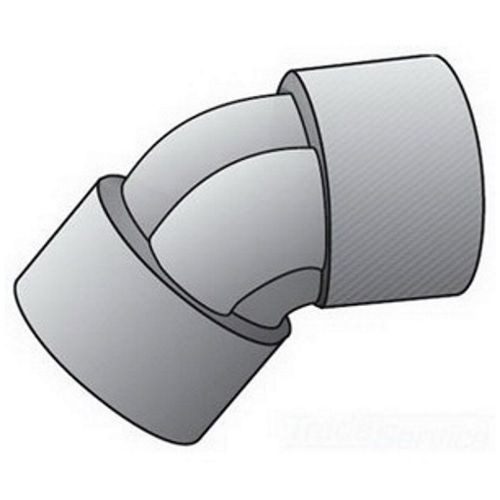

O-Z/Gedney Conduit Elbow, Dust-Ignitionproof Explosionproof Short, Series: ELFF, 1/2 in, 45 deg, For Use With: Threaded IMC/Rigid Conduit, Malleable Iron, Zinc Electroplated, 2-5/16 in H

Selected ELFF-450O-Z/Gedney Conduit Elbow, Dust-Ignitionproof Explosionproof Short, Series: ELFF, 1/2 in, 45 deg, For Use With: Threaded IMC/Rigid Conduit, Malleable Iron, Zinc Electroplated, 2-5/16 in H
ELFF-450O-Z/Gedney Conduit Elbow, Dust-Ignitionproof Explosionproof Short, Series: ELFF, 1/2 in, 45 deg, For Use With: Threaded IMC/Rigid Conduit, Malleable Iron, Zinc Electroplated, 2-5/16 in H

Specification

Trade Size
1/2 in
Standard & Approvals
ARRA Compliant, UL File No. E-34997, Class I, Div 1, 2, Groups A, B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, IIC, Class II, Div 1, 2, Groups E, F, G, Class III, CSA 009795, UL 514B, UL 886, CSA C22.2 No. 30, NEC Articles 500-503/505, Military Specification Mil-F-28675
Minimum Order Qty
1
Order Interval
1
Angle
45 deg
Catalog ID
OZGELFF-450
Dimensions
2-5/16 in H
Finish
Zinc Electroplated
Material
Malleable Iron
Series
ELFF
Type
Dust-Ignitionproof Explosionproof Short
Suitable For Use With
Threaded IMC/Rigid Conduit
