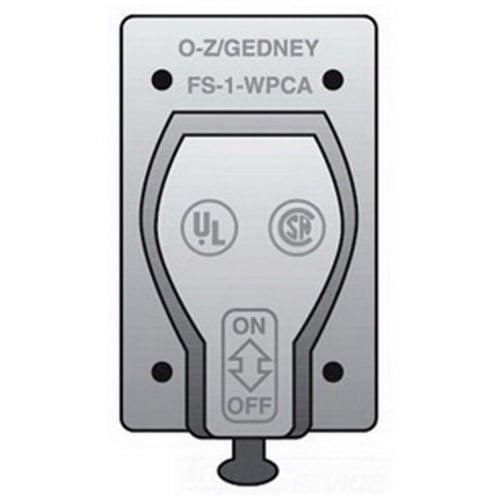

O-Z/Gedney FS-1-WPCA Device Box Cover, Pull Switch Cover, Sand Cast Aluminum

Selected FS-1-WPCAO-Z/Gedney FS-1-WPCA Device Box Cover, Pull Switch Cover, Sand Cast Aluminum
FS-1-WPCAO-Z/Gedney FS-1-WPCA Device Box Cover, Pull Switch Cover, Sand Cast Aluminum

Documents

Short Description

Cast device boxes from Appleton Group incorporate several innovative and useful features. Ridge top construction creates a positive seal against moisture when the cover and gasket are tightened against the body. Wet location receptacle covers provide a gasket that sets around the plug to seal out moisture even when the receptacle is in use. Captive stainless steel screws simplify installation and prevent “freezing.” Hub and cover options meet virtually any requirement. Whatever size box you need, we’re your source.

Features

  • To cover and seal FS and FD style boxes and to mount wiring devices, suitable for wet locations
  • Covers also mount on ordinary boxes with standard device box openings
  • All wet location covers supplied with sealing gaskets
  • Stainless steel screws to prevent corrosion
  • (1) pull switch
  • Without knockouts

Specification

Mounting Type
Surface
Number of Gangs
1
Number of Outlets
1
Finish
Epoxy Powder Coated
Material
Sand Cast Aluminum
Standard & Approvals
UL 514A, E18095, CSA 009795, C22.2 No 18, Federal Specification A-A-50563, NEMA FB-1, 3R
Series
FS-1
Application
For external operation of tumbler switches with square handles
