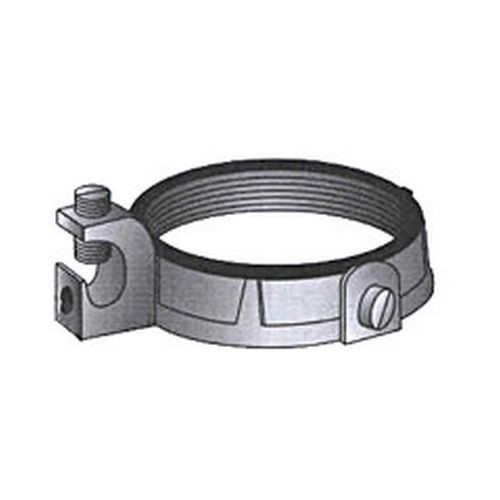

O-Z/Gedney IBC-350L-20BC Threaded Grounding Bushing, 3-1/2 in Trade, 14 AWG Solid Wire Min, 2/0 AWG Stranded Wire Max, 4-1/2 in Dia, Malleable Iron

Selected IBC-350L-20BCO-Z/Gedney IBC-350L-20BC Threaded Grounding Bushing, 3-1/2 in Trade, 14 AWG Solid Wire Min, 2/0 AWG Stranded Wire Max, 4-1/2 in Dia, Malleable Iron
IBC-350L-20BCO-Z/Gedney IBC-350L-20BC Threaded Grounding Bushing, 3-1/2 in Trade, 14 AWG Solid Wire Min, 2/0 AWG Stranded Wire Max, 4-1/2 in Dia, Malleable Iron

Short Description

O-Z/Gedney IBC-L Series insulated bushings fasten and ground threadless RMC to an enclosure. Insulated bushings can be used with a locknut to terminate conduit at an enclosure. The lug is used to connect a bonding jumper to a neutral bus bar.

Features

  • Bronze Lay-In-Lug™ for copper conductors
  • Temperature rating 302 deg F
  • Insulating liner material is self-extinguishing
  • The plastic liner is tough
  • It won't chip, crack, swell or shrink
  • It resists corrosion, chemicals and temperature extremes
  • Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
  • Lugs not sold separately

Specification

Height
1 in
Lug Type
Bright Dipped Bronze Lay-In
Material
Malleable Iron
Maximum Wire Size
2/0 AWG Stranded
Minimum Wire Size
14 AWG Solid
Series
IBC-L-BC
Throat
Insulated
Trade Size
3-1/2 in
Turning Radius
3-1/16 in
Type
Threaded
Application
For RMC and IMC conduit
Standard & Approvals
ARRA Compliant, CEC Certified, CSA 009795/C22.2 No. 41, Federal Specification W-F-408E, NEC Certified, NEMA FB-1, UL 467/E-24264
Diameter
4-1/2 in
Finish
Zinc Plated
Includes
Zinc Plated Steel Clamping and Set Screw
