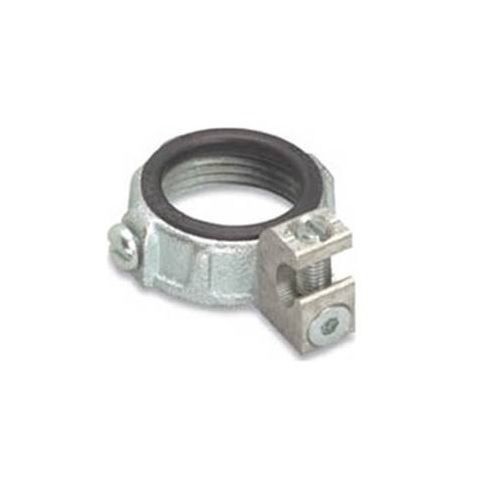

O-Z/Gedney IBC-350L-4AC Insulated Threaded Grounding Bushing With Lug, 3-1/2 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 4-1/2 in Dia, Malleable Iron
O-Z/Gedney IBC-350L-4AC Insulated Threaded Grounding Bushing With Lug, 3-1/2 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 4-1/2 in Dia, Malleable Iron
SKU: OZGIBC-350L-4AC
Manufacturer Part Number: IBC-350L-4AC
UPC: 783126303384
Short Description
Features
- Threaded connection
- 150 deg C temperature rating
- Malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay-in lug grounding lug
- Used to protect wires and cables at entry and exit of conduit and to provide for grounding of the conduit
- Insulating liner material is UL V-O rated (self-extinguishing)
- Plastic liner is tough, it wont chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes
- Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
- Set-screw provided with each fitting locks bushing in any desired position
- Lugs not sold separately
- UL listed for use with copper or aluminum grounding conductors
- Zinc plated steel clamping screw and set screws
Specification
| Height | 1 in |
|---|---|
| Lug Type | Tin Plated Aluminum Lay-In-Lug |
| Material | Malleable Iron |
| Maximum Wire Size | 4 AWG |
| Minimum Wire Size | 14 AWG |
| Series | IBC-L-AC |
| Throat | Plastic Liner |
| Trade Size | 3-1/2 in |
| Turning Radius | 2-7/8 in |
| Type | Insulated |
| Standard & Approvals | Third Party Certification: UL E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No. 41, Federal Specification W-F-408E, NEMA: FB-1 |
| Application | For Rigid Conduit and IMC |
| Diameter | 4-1/2 in |
| Finish | Zinc Plated |
