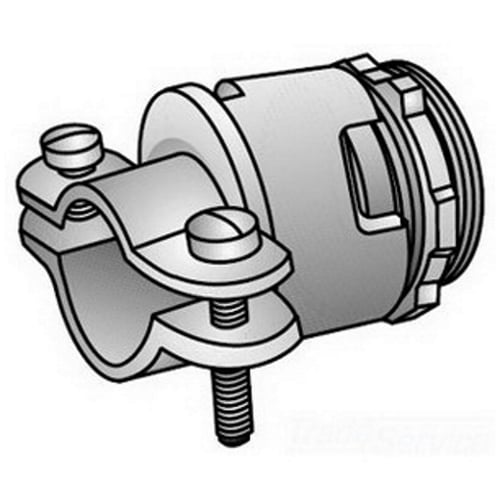

O-Z/Gedney NEER™ KC-50 Type KC Cable Connector With Locknut, 1/2 in Trade, 1/2 to 29/32 in Cable Openings, For Use With Armored/FMC/Interlocked Metal Clad/Non-Metallic/Service Entrance Cable, Malleable Iron, Zinc Electroplated

Selected Data-Spec SheetO-Z/Gedney NEER™ KC-50 Type KC Cable Connector With Locknut, 1/2 in Trade, 1/2 to 29/32 in Cable Openings, For Use With Armored/FMC/Interlocked Metal Clad/Non-Metallic/Service Entrance Cable, Malleable Iron, Zinc Electroplated
Data-Spec SheetO-Z/Gedney NEER™ KC-50 Type KC Cable Connector With Locknut, 1/2 in Trade, 1/2 to 29/32 in Cable Openings, For Use With Armored/FMC/Interlocked Metal Clad/Non-Metallic/Service Entrance Cable, Malleable Iron, Zinc Electroplated

Documents

Features

  • Male NPS thread connection
  • Centre stopped
  • Two screw
  • Zinc Electroplated

Specification

Material
Malleable Iron
Mounting Type
Screw
Minimum Order Qty
1
Order Interval
1
Cable Openings
1/2 - 29/32 in
Catalog ID
OZGKC-50
Dimensions
1-9/16 in L x 1-7/8 in W
Finish
Zinc Plated
Suitable For Use With
Armored Cable, Flexible Metal Conduit, Interlocked Metal Clad Cables, Non-Metallic and Service Entrance Cable
Trade Size
1/2 in
Type
Type KC
Application
For grounding and securing armored cable, flexible metal conduit and interlocked metal clad cables to boxes and enclosures and to secure non-metallic and service entrance cables to boxes and enclosures
Standard & Approvals
UL 514B/E11853/E11856/E11858 Listed, CSA 9795/C22.2 No18 Certified, Federal Specification W-F-406E, NEMA FB-1, RoHS Compliant
