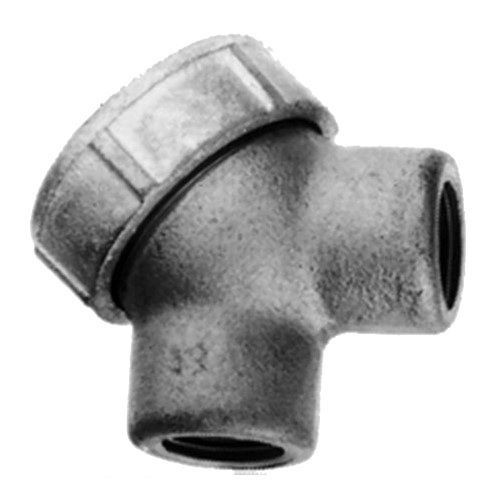

O-Z/Gedney LBY-100 Type LBY Explosionproof Short Capped Conduit Elbow, 1 in Trade, 90 deg, Malleable Iron, Electro-Plated Zinc

Selected LBY-100O-Z/Gedney LBY-100 Type LBY Explosionproof Short Capped Conduit Elbow, 1 in Trade, 90 deg, Malleable Iron, Electro-Plated Zinc
LBY-100O-Z/Gedney LBY-100 Type LBY Explosionproof Short Capped Conduit Elbow, 1 in Trade, 90 deg, Malleable Iron, Electro-Plated Zinc

Documents

Short Description

Every O-Z/Gedney electrical product is built to pass a simple test. Time. O-Z/Gedney has over 150 years of experience in outfitting electrical infrastructure in commercial and industrial applications, with solutions that ensure reliable and durable installations to help process our food, clean our water, generate our power and get us safely from place to place. Our materials, field research and design innovation come together in products that are unsurpassed for quality.

Features

  • Provides a 90 deg change in direction in hazardous and ordinary locations where accessibility is needed for pulling conductors
  • Screw-on cover for ease of installation and removal
  • Cover opens on an angle permitting conductors to be pulled straight through either hub
  • Can make 90 deg turns in conduit where a compact turn is desired
  • Tapered FNPT hub connection
  • Zinc electroplated
  • Class I, Division 1, 2, Groups A, B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, IIC, Class II, Division 1, 2, Groups E, F, G, Class III

Specification

Material
Malleable Iron
Minimum Order Qty
1
Order Interval
1
Angle
90 deg
Finish
Zinc Plated
Series
LBY
Suitable For Use With
IMC/Rigid Conduit
Type
Short
Application
Hazardous Locations
Standard & Approvals
UL 34997, Class I, Division 1, 2, Groups A, B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, IIC, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 009795, UL 514B And 886, CSA C22.2 Number 30, NEC Articles 500-503 And 505, Military Specification Mil-F-28675
Trade Size
1 in
Catalog ID
OZGLBY-100
Dimensions
2-13/16 in L x 2-13/16 in H
