O-Z/Gedney LL75ATW Type LL Conduit Outlet Body, 3/4 in Hub, 7.3 cu-in Capacity, Die Cast Copper Free Aluminum, Epoxy Powder Coated Enamel

Selected LL50ATWO-Z/Gedney LL50ATW Type LL Conduit Outlet Body, 1/2 in Hub, 4.3 cu-in Capacity, Die Cast Copper Free Aluminum, Aluminum Enamel

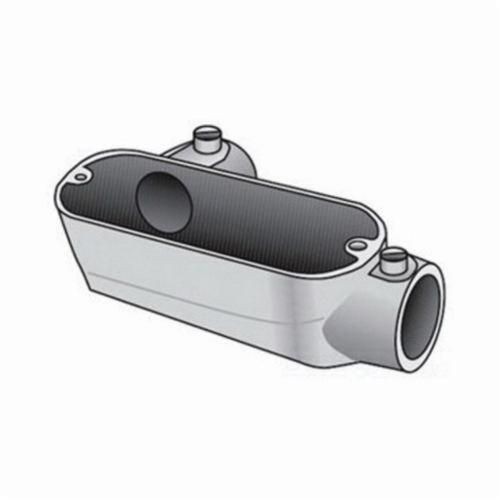

LL50ATWO-Z/Gedney LL50ATW Type LL Conduit Outlet Body, 1/2 in Hub, 4.3 cu-in Capacity, Die Cast Copper Free Aluminum, Aluminum Enamel

Documents

Short Description

Every O-Z/Gedney electrical product is built to pass a simple test. Time. O-Z/Gedney has over 150 years of experience in outfitting electrical infrastructure in commercial and industrial applications, with solutions that ensure reliable and durable installations to help process our food, clean our water, generate our power and get us safely from place to place. Our materials, field research and design innovation come together in products that are unsurpassed for quality.

Features

  • To provide access to conductors for pulling, splicing, maintenance and future changes/upgrades
  • Allows connection and changing the direction of straight conduit runs, branch conduit runs and 90 deg bends
  • Slotted hex head steel hardened cup-point set screw for EMT
  • Internal volume and maximum wire clearly marked on castings
  • Left side access opening
  • Permit access to conductors for maintenance
  • Raintight when used with gasketed covers
  • (3) 6 AWG maximum number of conductors
  • Copper Free Die Cast Aluminum

Specification

Hub Size
3/4 in
Material
Aluminum
Number of Hubs
2
Type
Type LL
Capacity
7.3 cu-in
Connection Type
Screw
Enclosure
NEMA FB-1/FB-2.10
Finish
Aluminum Enamel
Standard & Approvals
UL 514A, E18095 Listed, CSA 9795, C22.2 NO 18 Certified, Federal Specification A-A-50563
Application
For EMT thinwall conduit
Dimensions
5-1/8 in L x 1-5/8 in H
