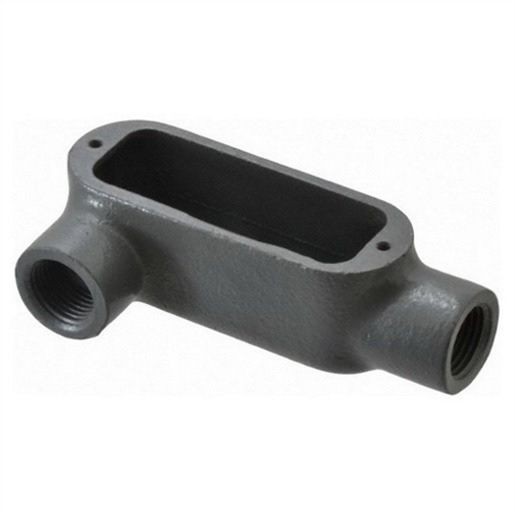

O-Z/Gedney LR67 Type LR Conduit Outlet Body, 2 in Hub, Form 7 Form, 50 cu-in Capacity, Grayloy Iron, Aluminum Enamel/Zinc Electroplated
O-Z/Gedney LR67 Type LR Conduit Outlet Body, 2 in Hub, Form 7 Form, 50 cu-in Capacity, Grayloy Iron, Aluminum Enamel/Zinc Electroplated
SKU: OZGLR67
Manufacturer Part Number: LR67
UPC: 783126388626
Short Description
Features
- Set screw type has slotted hex head steel hardened cup-point set screw for EMT
- Domed copper free aluminum cover with stainless steel screws
- Closed-cell neoprene gasket
- Tapered threaded hubs (NPT) or set screw design
- Threaded style is raintight when used with casketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Flat back design for greater wiring capacity and surface mounting
- Time-saving Clip-on™ covers in stamped steel, gray iron or aluminum
- Stainless steel screws
- Suitable for wet locations when used with gasketed covers
- 90 deg hub location
- Right side access opening
- Allow connection of straight conduit runs, branch conduit runs and 90 deg bends
- (3) 3/0 AWG max wire fill
- Tapered FNPT Connection
- Zinc Electroplated With Aluminum Enamel
Specification
| Hub Size | 2 in |
|---|---|
| Material | Iron |
| Mounting Type | Surface |
| Number of Hubs | 2 |
| Standard & Approvals | UL 514A, E18095 Listed, CSA 009795, CSA C22.2 NO 18 Certified, Federal Specification A-A-50563 |
| Color | Gray |
| Connection Type | FNPT |
| Finish | Zinc Plated |
| Form | 7 |
| Enclosure | NEMA FB-1/FB-2.10 |
| Capacity | 50 cu-in |
| Dimensions | 8-1/8 in L x 4-1/8 in W x 3-1/8 in H |
| Application | For pulling, splicing, maintenance and future changes and upgrades |
| Type | Type LR |
