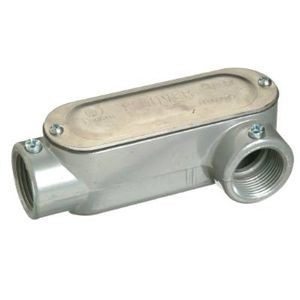

O-Z/Gedney LR75A Type LR Conduit Outlet Body, 7.3 cu-in Capacity, Sand Cast Copper Free Aluminum, Aluminum Enamel/Epoxy Powder Coated
O-Z/Gedney LR75A Type LR Conduit Outlet Body, 7.3 cu-in Capacity, Sand Cast Copper Free Aluminum, Aluminum Enamel/Epoxy Powder Coated
SKU: OZGLR75A
Manufacturer Part Number: LR75A
UPC: 783126387810
Documents
Short Description
Features
- Set screw type has slotted hex head steel hardened cup-point set screw for EMT
- Domed copper free aluminum cover with stainless steel screws
- Closed-cell neoprene gasket
- Tapered threaded hubs (NPT) or set screw design
- Threaded style is raintight when used with casketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Allows connection of straight conduit runs, branch conduit runs and 90 deg bends
- Suitable for wet locations when used with gasketed covers
- 90 deg hub location
- Right side access opening
- (3) 6 AWG max wire fill
- Copper Free Die Cast Aluminum
- Tapered FNPT Connection
Specification
| Hub Size | 3/4 in |
|---|---|
| Material | Aluminum |
| Number of Hubs | 2 |
| Type | Type LR |
| Application | For pulling, splicing, maintenance and future changes and upgrades |
| Standard & Approvals | UL 514A, E18095 Listed, CSA LR-9795, CSA C22.2 NO 18 Certified, Federal Specification A-A-50563 |
| Capacity | 7.3 cu-in |
| Connection Type | FNPT |
| Finish | Aluminum Enamel |
| Enclosure | NEMA FB-1/FB-2.10 |
| Dimensions | 5-1/8 in L x 1-5/8 in H |
