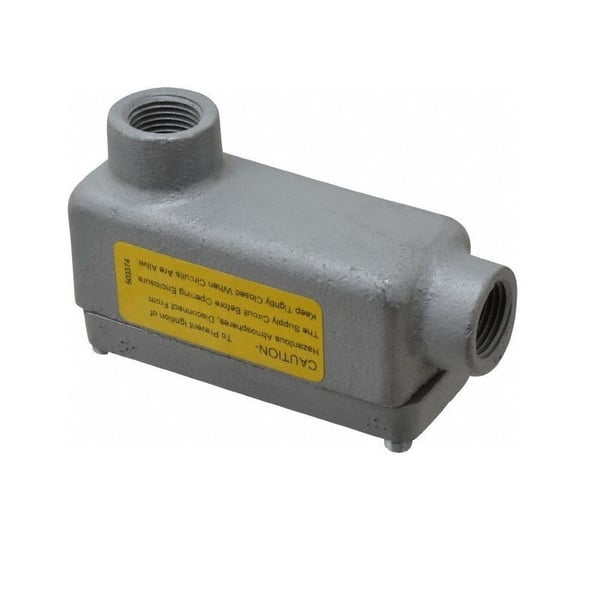

O-Z/Gedney OELB50 Type OELB Conduit Outlet Body, 1/2 in Hub, 4.8 cu-in Capacity, Grayloy Iron, Aluminum Enamel/Zinc Electroplated

Selected OELB50O-Z/Gedney OELB50 Type OELB Conduit Outlet Body, 1/2 in Hub, 4.8 cu-in Capacity, Grayloy Iron, Aluminum Enamel/Zinc Electroplated
OELB50O-Z/Gedney OELB50 Type OELB Conduit Outlet Body, 1/2 in Hub, 4.8 cu-in Capacity, Grayloy Iron, Aluminum Enamel/Zinc Electroplated

Documents

Short Description

O-Z/Gedney conduit bodies, covers and gaskets provide access to conductors for pulling, splicing, maintenance, and future changes and upgrades. They allow connection of straight conduit runs, branch conduit runs and 90deg bends. Covers and gaskets can be ordered separately, or the conduit bodies, covers and gaskets can be ordered as a complete assembly.

Features

  • Provide access for pulling conductors
  • Enable change in direction in conduit runs
  • Compact design allows use in areas with limited space
  • Provide future access for maintenance and wiring changes
  • Precision ground flange, blind drilled and tapped screw holes
  • Smooth integral hub bushings to protect conductor insulation when pulling
  • Suitable for hazardous locations, 90 deg hub placement, back accesses opening
  • Threaded (NPT) for rigid conduit or IMC
  • Five different hub configurations
  • Zinc Electroplated With Aluminum Enamel finish
  • Zinc Electroplated

Specification

Hub Size
1/2 in
Material
Iron
Number of Hubs
2
Application
For Rigid/IMC Conduit
Color
Gray
Connection Type
Threaded
Finish
Zinc Plated
Dimensions
4-3/4 in L x 1-5/8 in W x 2-1/16 in H
Standard & Approvals
UL 886, E-30513 Listed, CSA C22.2 NO30, 009795 Certified, NEC Articles 500-503 & 505, Mil. Spec: Mil-F-28675, Fed. Spec: A-A-50563, Class I, Div. 1, 2, Groups C, D Class I, Zone 1, 2, Groups IIA, IIB Class II, Div. 1, 2, Groups E, F, G Class III
Type
Type LB
