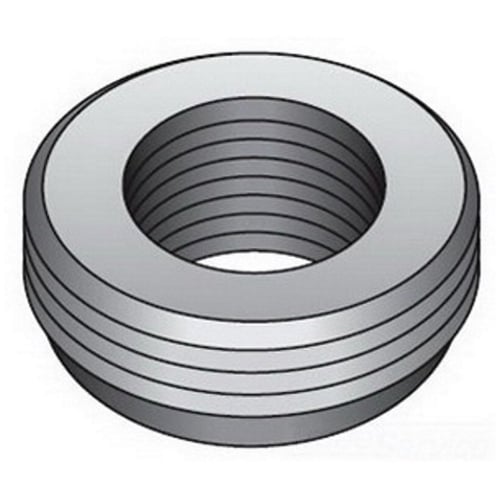

O-Z/Gedney RB-327S RB Series Reducing Bushing, 1-1/2 x 1-1/4 in Trade, Steel, Zinc Electroplated

Selected Data-Spec SheetO-Z/Gedney RB-327S RB Series Reducing Bushing, 1-1/2 x 1-1/4 in Trade, Steel, Zinc Electroplated
Data-Spec SheetO-Z/Gedney RB-327S RB Series Reducing Bushing, 1-1/2 x 1-1/4 in Trade, Steel, Zinc Electroplated

Documents

Short Description

O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.

Features

  • O-Z/Gedney bushings are used to reduce the trade size of a tapped hole or hub
  • They are suitable for use in hazardous and ordinary locations
  • Smooth internal bushing protects conductors
  • Explosion proof and dust-ignition proof
  • Tapered NPT thread connection

Specification

Material
Steel
Mounting Type
Flush
Trade Size
1-1/2 x 1-1/4 in
Type
Type RB
Application
For threaded Rigid/IMC conduits
Finish
Zinc Electroplated
Dimensions
13/16 in L
Standard & Approvals
UL E-34997, Class I, Division 1, 2, Groups A, B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, IIC, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 009795, UL 886, CSA C22.2 Number 30, NEC Articles 500-503 & 505
