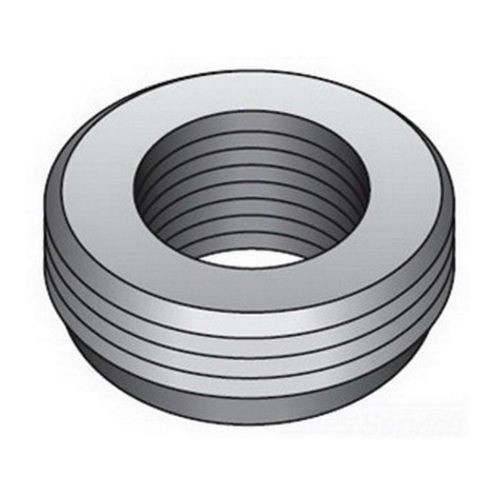

O-Z/Gedney RB-333 RB Series Reducing Bushing, 2 x 1 in Trade, Malleable Iron, Zinc Electroplated

Selected O-Z/Gedney RB-333 RB Series Reducing Bushing, 2 x 1 in Trade, Malleable Iron, Zinc Electroplated
O-Z/Gedney RB-333 RB Series Reducing Bushing, 2 x 1 in Trade, Malleable Iron, Zinc Electroplated

Documents

Short Description

O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.

Features

  • O-Z/Gedney bushings are used to reduce the trade size of a tapped hole or hub
  • They are suitable for use in hazardous and ordinary locations
  • Smooth internal bushing protects conductors
  • Explosion proof and dust-ignition proof
  • Tapered NPT thread connection

Specification

Material
Malleable Iron
Mounting Type
Flush
Minimum Order Qty
1
Order Interval
1
Finish
Zinc Electroplated
Trade Size
2 x 1 in
Type
Type RB
Application
For threaded Rigid/IMC conduits
Standard & Approvals
UL File Number E-34997, Class I, Division 1, 2, Groups B, C, D, Class I, Zone 1, 2, Groups IIA, IIB + H2, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 009795,
Dimensions
7/8 in L
Catalog ID
OZGRB-333
