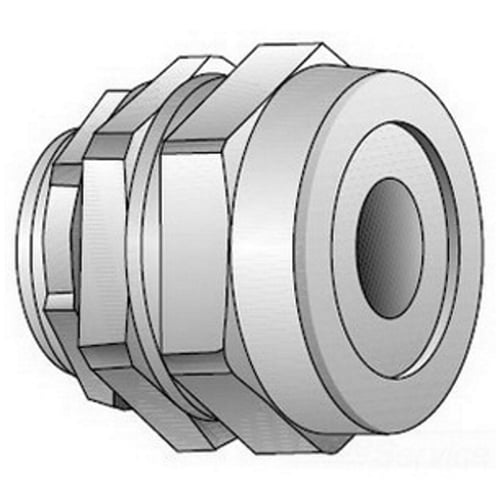

O-Z/Gedney SR-12512 Strain Relief Straight Cord Connector, 1-1/4 in Trade, 1 to 1.2 in Cable Openings, Malleable Iron, Zinc Plated

Selected Data-Spec SheetO-Z/Gedney SR-12512 Strain Relief Straight Cord Connector, 1-1/4 in Trade, 1 to 1.2 in Cable Openings, Malleable Iron, Zinc Plated
Data-Spec SheetO-Z/Gedney SR-12512 Strain Relief Straight Cord Connector, 1-1/4 in Trade, 1 to 1.2 in Cable Openings, Malleable Iron, Zinc Plated

Documents

Short Description

Every O-Z/Gedney electrical product is built to pass a simple test. Time. O-Z/Gedney has over 150 years of experience in outfitting electrical infrastructure in commercial and industrial applications, with solutions that ensure reliable and durable installations to help process our food, clean our water, generate our power and get us safely from place to place. Our materials, field research and design innovation come together in products that are unsurpassed for quality.

Features

  • UL Listed NEMA 4 and 6 when installed into a NPT threaded entry or UL Listed conduit hub (sizes 1-1/4 in and larger require thread sealant)
  • PVC grommets
  • 0.63 in thread length
  • 1.2 in throat I.D
  • Watertight/oiltight

Specification

Material
Malleable Iron
Series
Gold Seal
Temperature Rating
90 deg C
Trade Size
1-1/4 in
Type
Strain Relief
Application
For securing and sealing cords or cables entering enclosures or raceways
Standard & Approvals
UL E11857, UL 514B Listed, CSA 009795, CSA C22.2 No 18 Certified, Federal Specification A-505-52, RoHs Compliant
Dimensions
2.06 in Dia x 1.38 in L
Connection Type
MNPT
Finish
Zinc Plated
Cable Openings
1 - 1.2 in
