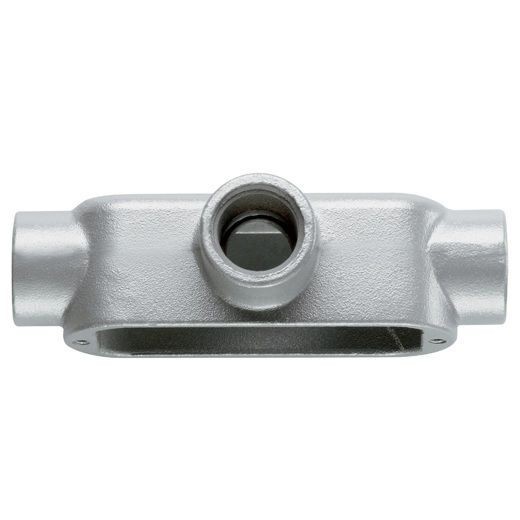

O-Z/Gedney Spec 5™ T-75 Type T Conduit Outlet Body, 7 cu-in, Malleable Iron, Aluminum Enamel/Zinc Electroplated
O-Z/Gedney Spec 5™ T-75 Type T Conduit Outlet Body, 7 cu-in, Malleable Iron, Aluminum Enamel/Zinc Electroplated
SKU: OZGT-75
Manufacturer Part Number: T-75
UPC: 783126517200
Documents
Short Description
Features
- Serve as pulling fittings
- Make bends in conduit system
- Provide openings for splicing
- Connect and change direction of conduit runs
- Allow connections for branch runs
- Permit access to conductors for maintenance
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Malleable iron suitable for use in concrete
- Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
- Internal volume and maximum wire capacity clearly marked on castings
- To provide access to conductors for pulling, splicing, maintenance and future changes/upgrades, allows connection of straight conduit runs, branch conduit runs and 90 deg bends
- Zinc Electroplated With Aluminum Enamel
Specification
| Hub Size | 3/4 in |
|---|---|
| Material | Malleable Iron |
| Number of Hubs | 3 |
| Type | Type T |
| Application | For Rigid/IMC Conduit |
| Standard & Approvals | UL 514A, E18095 Listed, CSA C22.2 NO 18, CSA 009795 Certified, Federal Specification Number A-A-50563, Hazardous Locations Class 1, Division 2 Per NEC Section 501-4(B) |
| Dimensions | 6-1/8 in L x 1-5/8 in H |
| Capacity | 7 cu-in |
| Connection Type | Tapered FNPT |
| Enclosure | NEMA FB-1/FB-2.10 |
| Finish | Zinc Plated |
