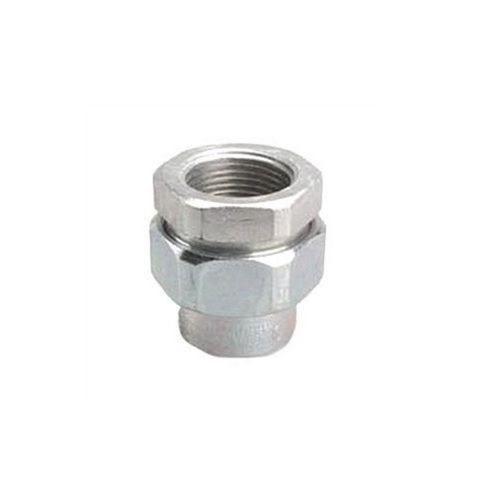

O-Z/Gedney UNF-75A Dust-Ignitionproof Explosionproof Conduit Union, 3/4 in, Copper Free Aluminum, Natural

Selected O-Z/Gedney UNF-75A Dust-Ignitionproof Explosionproof Conduit Union, 3/4 in, Copper Free Aluminum, Natural
O-Z/Gedney UNF-75A Dust-Ignitionproof Explosionproof Conduit Union, 3/4 in, Copper Free Aluminum, Natural

Documents

Short Description

We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. threaded and threadless, insulated or uninsulated non-insulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.

Features

  • Facilitates modifications, permits removal of enclosures without turning or removal of conduit
  • Explosion proof, dust-ignition proof
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Concretetight
  • Female x female connection

Specification

Material
Copper Free Aluminum
Minimum Order Qty
1
Order Interval
1
Finish
Natural
Size
3/4 in
Standard & Approvals
CSA C22.2 No. 30, CSA 065181, UL 886 (1203) and UL E10444
Suitable For Use With
Rigid Conduit/IMC
Series
UNF
Dimensions
1-25/32 in OD x 1-3/4 in L
Catalog ID
OZGUNF-75A
Application
For joining conduit to conduit
Type
Non-Expansion
